SELECT A DIAGRAM

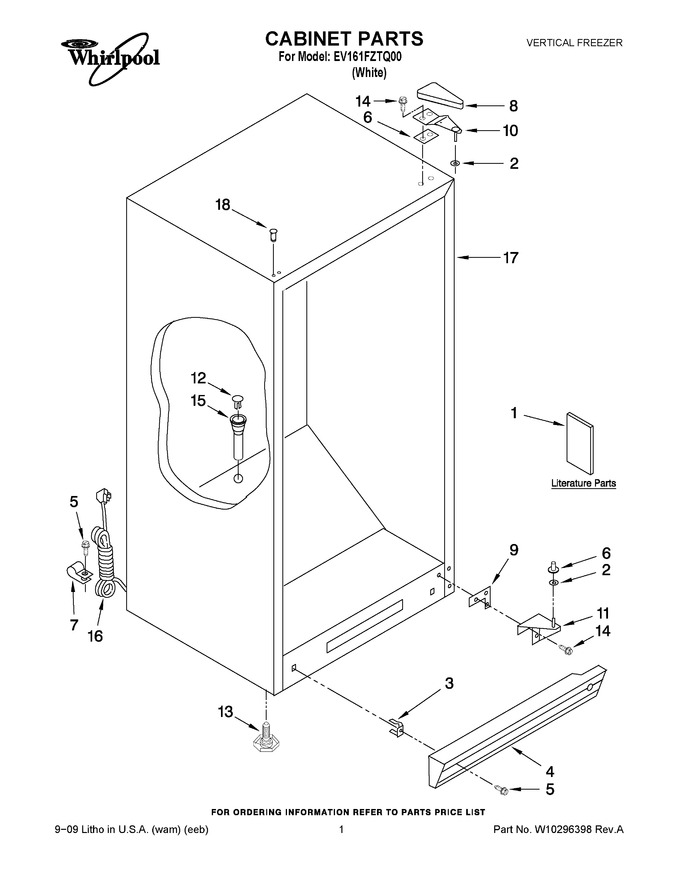

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296573		Energy Label/tag		Appelez-nous	-
1	8210432		Owners Manual		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4390520)				$ 10.57
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.95
4	WP4-60461-005		Grille   (Replaces: 8210290)				$ 111.89
5	WP489478		Screw   (Replaces: 4357243)				$ 7.75
6	4390489		Shim, Top				$ 6.95
7	488946		Clamp, Tube   (Replaces: 4356643)				$ 20.45
8	4357279		Cover, Hinge				$ 46.56
9	4390489		Shim, Bottom				$ 6.95
10	2-81016-105		Hinge, Top   (Replaces: 8210222)				$ 41.18
11	8210223		Hinge, Bottom		Appelez-nous	-
12	4357019		Drain Plug		Appelez-nous	-
13	WP3-82710-001		Leg, Leveler   (Replaces: W10177675)			Immediately	$ 20.32
14	WP8204624		Screw   (Replaces: 4356830)				$ 16.65
15	4357269		Grommet, Drain		Appelez-nous	-
16	8210375		Cord, Power		Appelez-nous	-
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	WP2189000		Plug, Hole (white)   (Replaces: 4390596)			Immediately	$ 7.40
