View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts

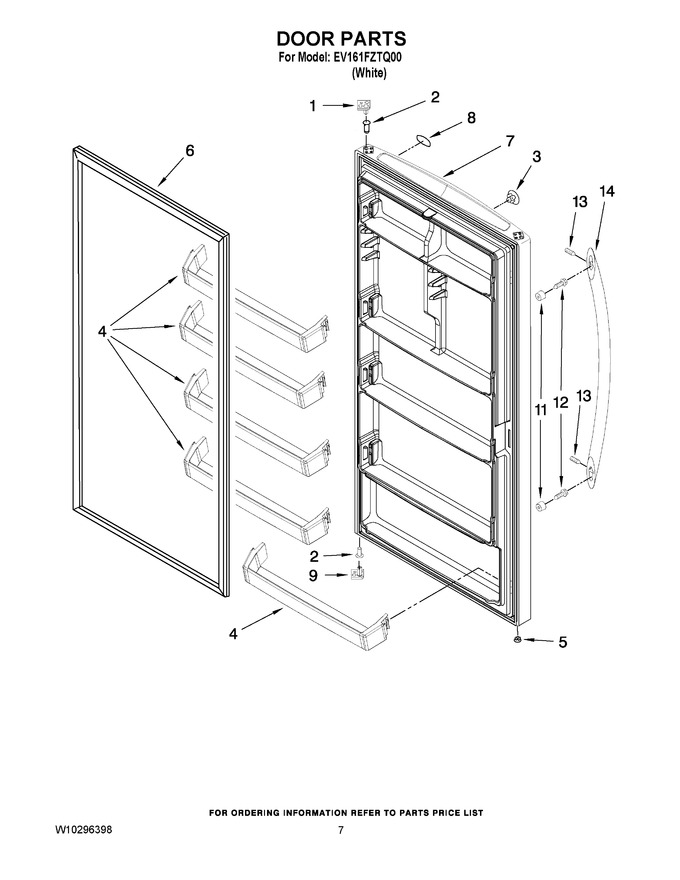

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210401 | Stop, Door (top) (white) |
|
- | |||||
| 2 | 4390672 | Hinge, Bushing |
|
- | |||||
| 3 | WP2189000 | Plug-handle (Replaces: 4390596) |
|
Immediately | $ 7.40 | ||||
| 4 | W10737497 | Rail, Door (5) (Replaces: 8210385) |
|
$ 92.13 | |||||
| 5 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.80 | |||||
| 6 | WP4-65151-001 | Gasket, Door (Replaces: 8210340) |
|
$ 337.64 | |||||
| 7 | W10296534 | Door Assembly (includes Interior Liner) |
|
$ 618.80 | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 88.74 | ||||
| 9 | 8210400 | Stop, Door (bottom) (natural) |
|
- | |||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 12 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 13 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 14 | WP2254600W | Handle (Replaces: 2254600W) |
|
$ 235.14 |
