SELECT A DIAGRAM

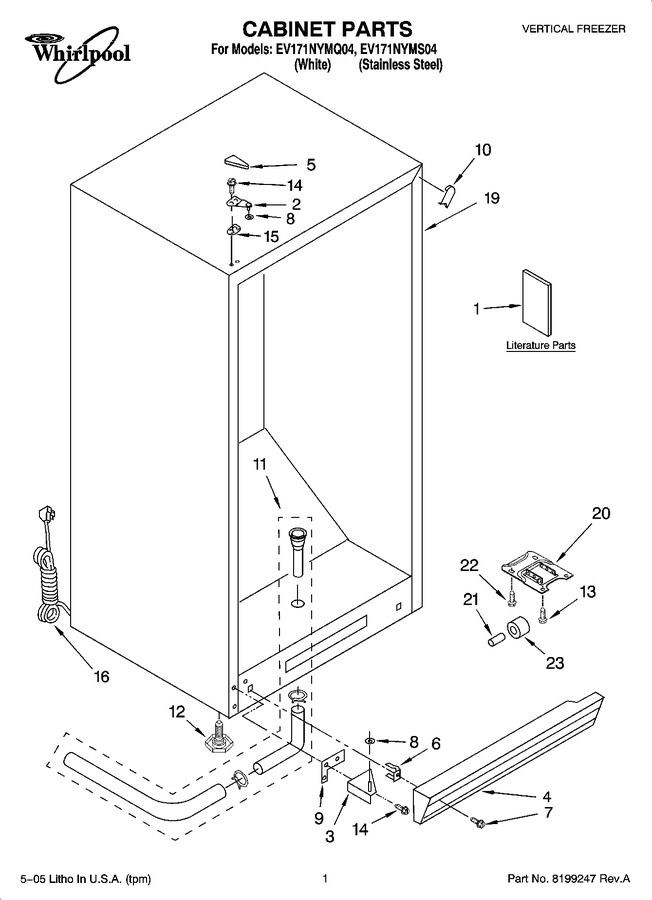

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390678		Owners Manual		Appelez-nous	-
1	8210209		Energy Guide		Appelez-nous	-
2	4390885		Top Hinge (white)		Appelez-nous	-
2	8210251		Top Hinge (black)				$ 159.95
3	8210223		Bottom Hinge (white)		Appelez-nous	-
3	4390947		Bottom Hinge (black)		Appelez-nous	-
4	4390761		Grille (black (includes 6 & 7))		Appelez-nous	-
4	WP4-60461-005		Grille (white)   (Replaces: 4390750)				$ 117.48
5	4357279		Hinge Cover (white)				$ 46.56
5	4390763		Hinge Cover (black)				$ 31.92
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
7	WP489478		Screw   (Replaces: 4357243)				$ 8.18
8	W10851331		Washer   (Replaces: 4390520)				$ 10.57
9	4390489		Shim, Bottom				$ 7.30
10	8210228		Filler, Corner (black)		Appelez-nous	-
10	8210227		Filler, Corner (white)		Appelez-nous	-
11	4390871		Drain Assembly		Appelez-nous	-
12	W11117769		Leg, Leveler   (Replaces: 4390866)			Immediately	$ 19.37
13	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
14	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
15	4390489		Shim, Hinge				$ 7.30
16	4390696		Power Cord				$ 90.49
19	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	8210265		Bracket, Roller		Appelez-nous	-
21	8210211		Axle		Appelez-nous	-
22	8210266		Screw		Appelez-nous	-
23	8210210		Roller, Front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
