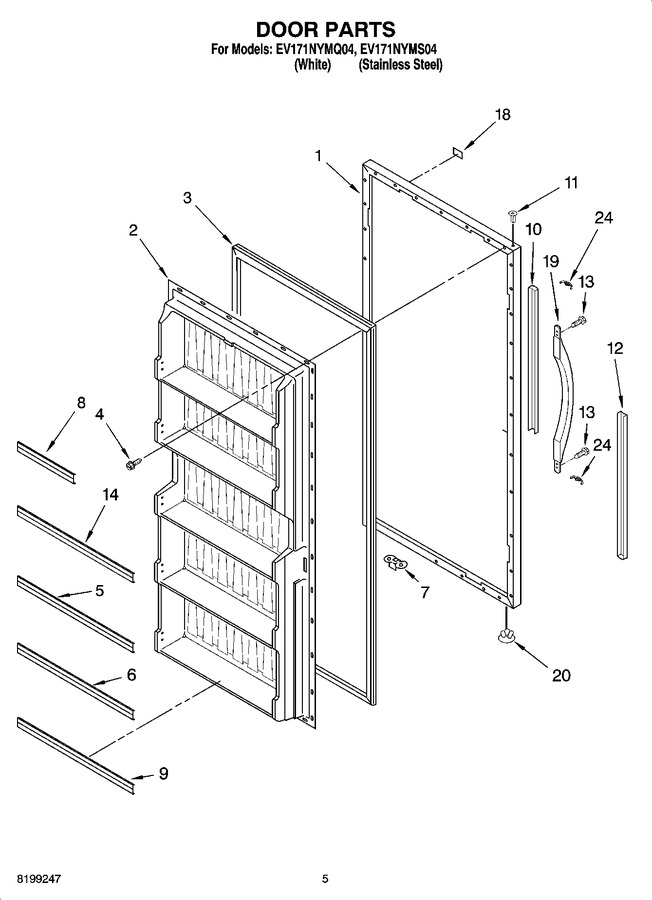

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390746		Exterior Door (white)		Appelez-nous	-
1	4390765		Exterior Door (stainless Steel (includes Insulation))		Appelez-nous	-
2	4390748		Interior Panel		Appelez-nous	-
3	WP4357142		Gasket (white)   (Replaces: 4357142)			Immediately	$ 279.97
3	WP4-81048-007		Gasket (black)   (Replaces: 4390759)				$ 377.45
4	4390598		Screw   (Replaces: 4357290)				$ 22.04
5	4390751		Trim Shelf		Appelez-nous	-
6	4390752		Trim Shelf, Lower		Appelez-nous	-
7	4390695		Door Stop		Appelez-nous	-
8	4390910		Dairy Door Rail Kit (short)		Appelez-nous	-
9	4390608		Dairy Door Rail (long)				$ 45.37
10	4390941		Trim, Top (black)		Appelez-nous	-
10	4390856		Trim, Top (white)		Appelez-nous	-
11	4390731		Bushing				$ 19.69
12	4390942		Trim, Bottom (black)		Appelez-nous	-
12	4390857		Trim, Bottom (white)		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 7.30
14	4390911		Rail (long Dairy Door)		Appelez-nous	-
18	4390656		Nameplate (white)		Appelez-nous	-
18	WP2213265		Nameplate (black)   (Replaces: 4390758)			Immediately	$ 93.18
19	3-82596-002		Handle Kit (includes Items 10,12,13,& 24) (white)   (Replaces: 4390747)				$ 265.43
19	4390757		Handle Kit (includes Items 10,12,13,& 24) (black)		Appelez-nous	-
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
24	4390935		Clip, Handle		Appelez-nous	-
