Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 3-82390-001 Knob, Control   (Replaces: 8210348) Special Order $ 28.67

3 WP4-83053-001 Thermostat   (Replaces: 8210395) Special Order $ 242.73

4 4390798 Screw Appelez-nous -
5 WP2196003 Tubing, Thermostat   (Replaces: 8210246) Special Order $ 7.95

6 4390621 Basket Appelez-nous -
7 W11384469 Switch, Light   (Replaces: 4390513) In-Stock Immediately $ 37.23

8 W11679940 Bulb, Light   (Replaces: 4390465) In-Stock Immediately $ 11.30

9 WP3-82393-001 Socket, Light   (Replaces: 8210350) Special Order $ 107.36

10 8210349 Lens, Light Special Order $ 33.01

11 8210351 Shield, Light Special Order $ 42.03

12 8210406 Box, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

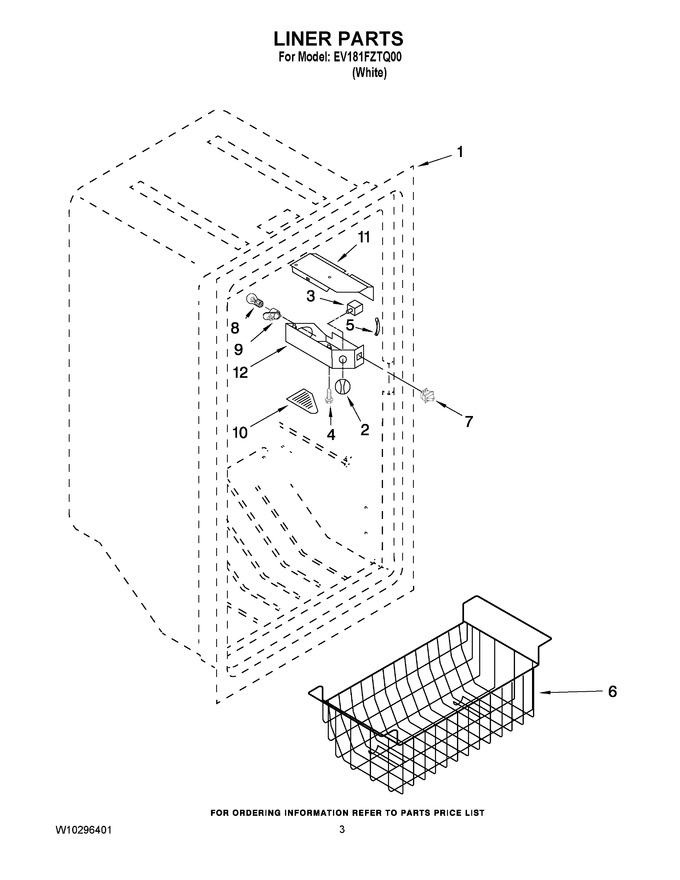

Diagram for EV181FZTQ00
