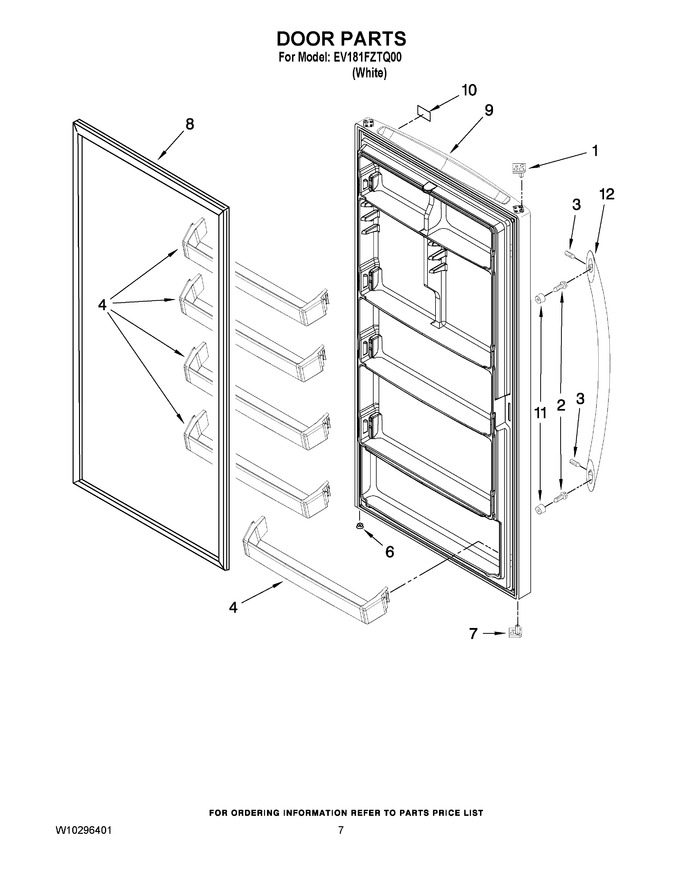

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210401 | Stop, Door |
|
- | |||||
| 2 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 3 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 4 | 8210397 | Rail, Door Shelf (5) |
|
- | |||||
| 6 | 3-24898-007 | Vent (Replaces: 4357067) |
|
$ 10.80 | |||||
| 7 | 8210400 | Stop, Door |
|
- | |||||
| 8 | WP4-65151-002 | Gasket, Door (Replaces: 8210339) |
|
$ 359.17 | |||||
| 9 | W10296435 | Door Assembly (includes Interior Door Liner) |
|
$ 420.68 | |||||
| 10 | 4390656 | Nameplate |
|
- | |||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 12 | WP2254600W | Handle Assembly (includes Item 3) (Replaces: 2317777W) |
|
$ 235.14 |
