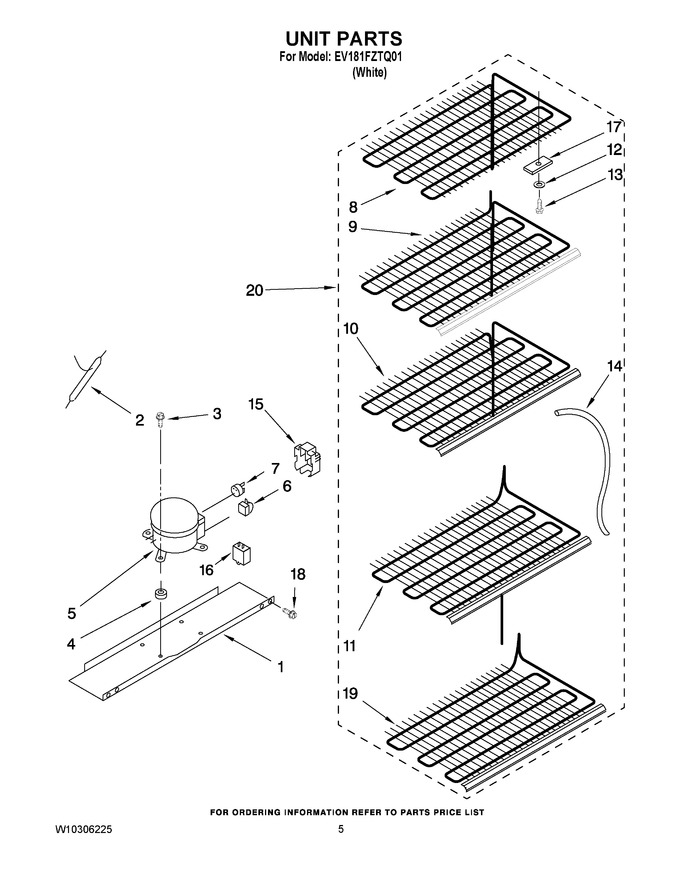

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10260544		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
3	4356852		Screw, Compressor Mounting				$ 6.57
4	4356335		Grommet		Appelez-nous	-
5	W10309990		Compressor (includes Items 4, 6, 7, & 15)   (Replaces: 4390792)			Immediately	$ 632.81
6	WPW10189190		Relay   (Replaces: 4357156)			Immediately	$ 131.29
7	WP2187145		Overload   (Replaces: W10306725)				$ 153.92
8	4-82416-001		Evaporator, Top   (Replaces: 8210407)		Appelez-nous	-
9	4-82416-001		Evaporator Shelf   (Replaces: 8210408)		Appelez-nous	-
10	4-82416-001		Evaporator Shelf   (Replaces: 8210409)		Appelez-nous	-
11	4-82416-001		Evaporator Shelf   (Replaces: 8210410)		Appelez-nous	-
12	4357057		Washer		Appelez-nous	-
13	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 4357223)				$ 9.14
14	4390881		Heat Exchanger		Appelez-nous	-
15	W10393770		Cover   (Replaces: W10296787)				$ 115.11
16	3-35956-013		Capacitor   (Replaces: 8210224)				$ 121.12
17	4356854		Clamp		Appelez-nous	-
18	WP3-24838-048		Screw   (Replaces: 4356820)				$ 8.33
19	4-82416-001		Evaporator Shelf, Bottom   (Replaces: 8210411)		Appelez-nous	-
20	W10306726		Evaporator Kit		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.9 Oz. R-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
