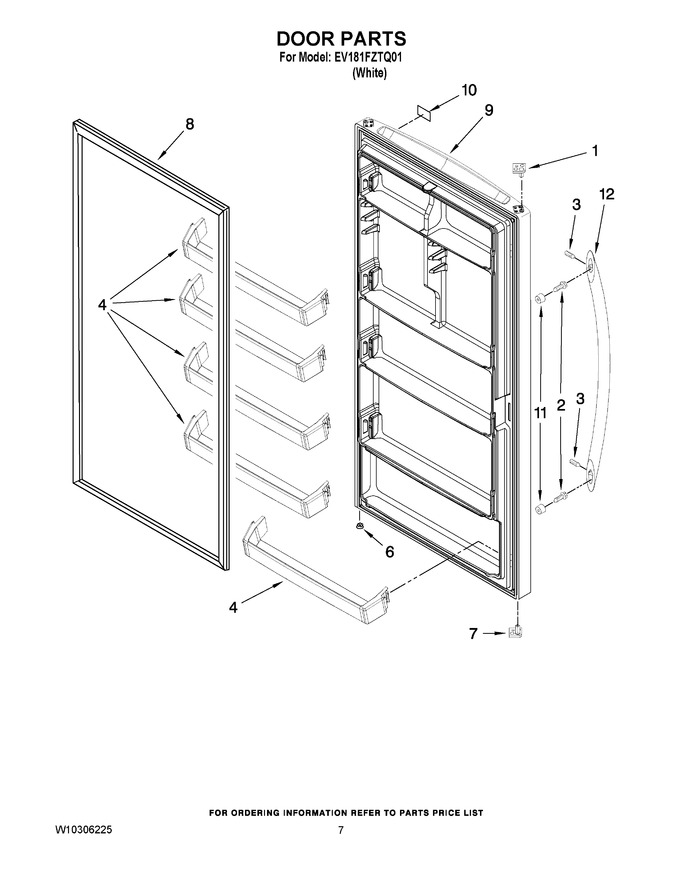

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210401 | Stop, Door |
|
- | |||||
| 2 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 3 | 4390598 | Screw, Set (Replaces: 4357290) |
|
$ 22.04 | |||||
| 4 | W10737497 | Rail, Door Shelf (5) (Replaces: 8210385) |
|
$ 96.74 | |||||
| 6 | 3-24898-007 | Vent (Replaces: 4357067) |
|
$ 11.34 | |||||
| 7 | 8210400 | Stop, Door |
|
- | |||||
| 8 | WP4-65151-002 | Gasket, Door (Replaces: 8210339) |
|
$ 377.13 | |||||
| 9 | W10628655 | Door Assembly (includes Interior Door Liner) (Replaces: W10306723) |
|
$ 590.37 | |||||
| 10 | 4390656 | Nameplate |
|
- | |||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 12 | 3-82596-002 | Handle Assembly (includes Item 3) (Replaces: W10306724) |
|
$ 265.43 |
