SELECT A DIAGRAM

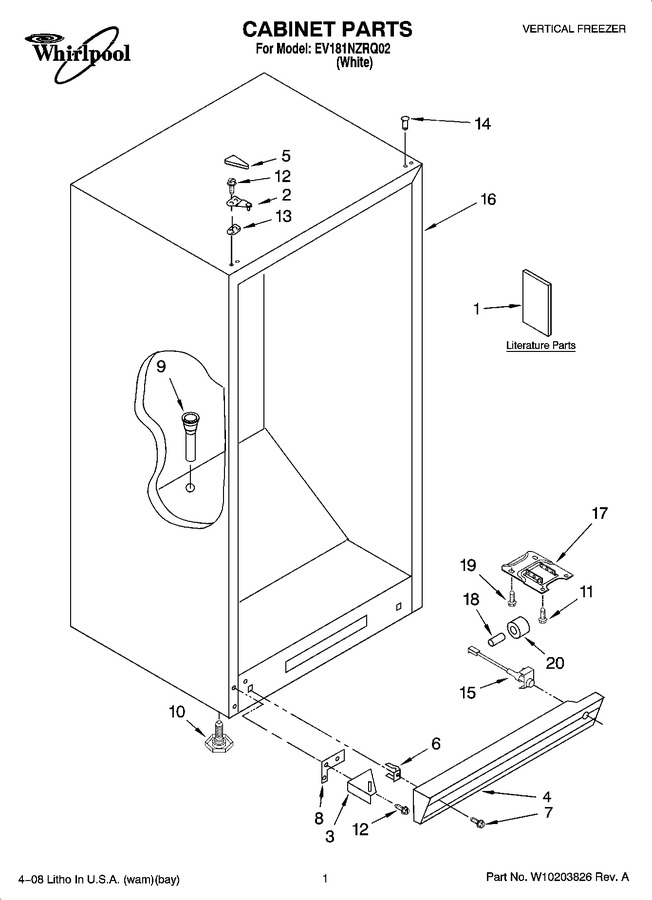

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210432		Owners Manual		Appelez-nous	-
1	8210345		Energy Guide/tag		Appelez-nous	-
2	2-81016-105		Top Hinge (white)   (Replaces: 8210222)				$ 43.24
3	8210223		Bottom Hinge (white)		Appelez-nous	-
4	8210293		Grille (includes 6 & 7) (white)				$ 40.70
5	4357279		Hinge Cover (white)				$ 46.56
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
7	WP489478		Screw   (Replaces: 4357243)				$ 8.18
8	4390489		Shim, Bottom				$ 7.30
9	W10164544		Grommet, Drain		Appelez-nous	-
10	WP3-82710-001		Leg, Leveller   (Replaces: W10177675)			Immediately	$ 20.32
11	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
12	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
13	4390489		Shim, Hinge				$ 7.30
14	WP2189000		Plug, Hole   (Replaces: 4390596)			Immediately	$ 7.77
15	4390905		Light, Power Indicator		Appelez-nous	-
17	8210265		Bracket, Roller		Appelez-nous	-
18	4390755		Axle				$ 13.86
19	8210266		Screw		Appelez-nous	-
20	3-60315-001		Roller, Front   (Replaces: 4390754)				$ 32.89

    View Diagram in Separate Window       Print Part List
