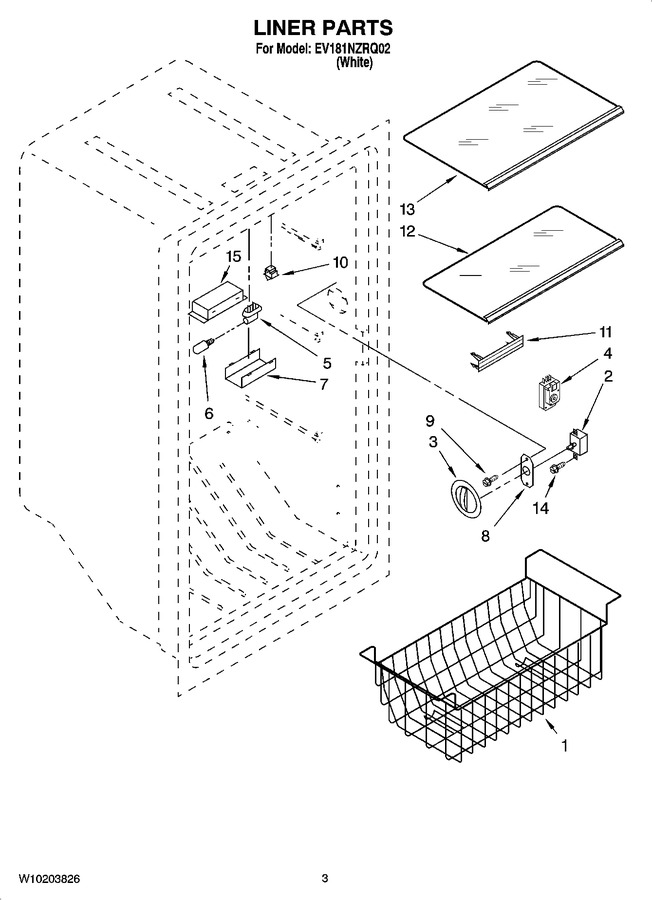

02 - Liner Parts
03 - Door Parts
04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390621 | Basket |
|
- | |||||
| 2 | WP4-83053-003 | Thermostat (Replaces: 8210311) |
|
$ 242.82 | |||||
| 3 | 4390619 | Knob, Thermostat |
|
- | |||||
| 4 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 189.66 | ||||
| 5 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 107.36 | |||||
| 6 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 7 | 4390743 | Light Shield |
|
- | |||||
| 8 | 1-81154 | Thermostat, Plate (Replaces: 4357041) |
|
$ 14.29 | |||||
| 9 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 4.07 | |||||
| 10 | W11384469 | Light, Switch (Replaces: 4390513) |
|
Immediately | $ 37.23 | ||||
| 11 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 12.86 | |||||
| 12 | 4390817 | Shelf, Middle (2) |
|
$ 113.01 | |||||
| 13 | 4390816 | Shelf, Top (2) |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 14.02 | ||||
| 15 | W10135693 | Bracket, Light |
|
- |
