SELECT A DIAGRAM

01 - Cabinet Parts

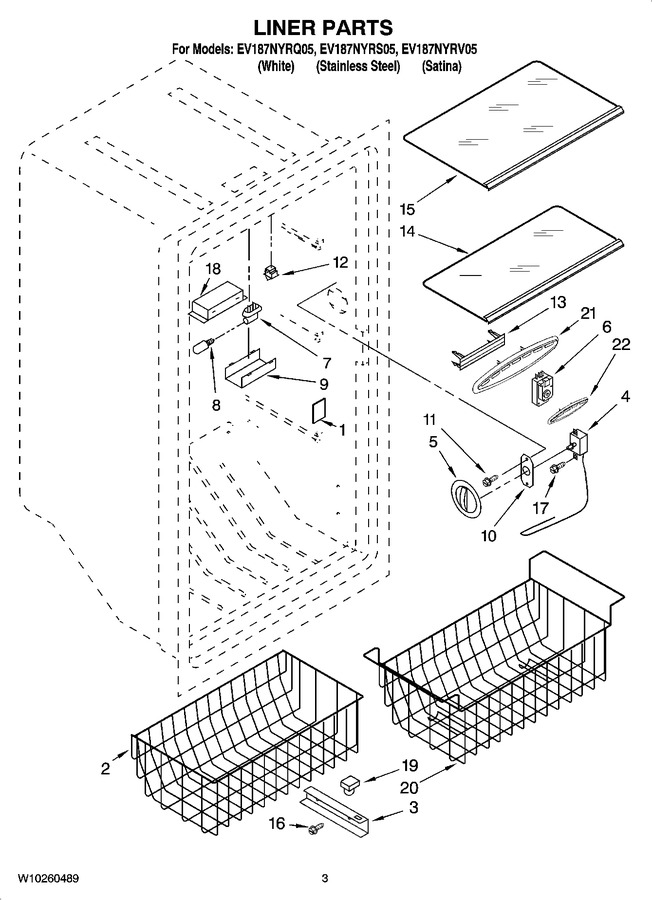

02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1-60123-001		Cover, Icemaker Hole   (Replaces: 4390649)				$ 76.28
2	4390818		Basket, Middle		Appelez-nous	-
3	4390819		Rail, Basket (right)		Appelez-nous	-
3	4390820		Rail, Basket (left)				$ 77.44
4	WP4-83053-003		Thermostat   (Replaces: 8210311)				$ 242.82
5	4390619		Knob, Thermostat		Appelez-nous	-
6	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 189.66
7	WP3-82393-001		Socket, Lamp   (Replaces: 8210350)				$ 107.36
8	W11679940		Bulb   (Replaces: 4390465)			Immediately	$ 11.30
9	4390743		Shield, Light		Appelez-nous	-
10	1-81154		Plate, Thermostat   (Replaces: 4357041)				$ 14.29
11	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.02
12	W11384469		Light, Switch   (Replaces: 4390513)			Immediately	$ 37.23
13	WP3-80414-103		Vent Plug   (Replaces: 4357295)				$ 12.86
14	4390817		Shelf, Middle				$ 113.01
15	4390816		Shelf, Top		Appelez-nous	-
16	WP489491		Screw (5/8``)   (Replaces: 4390821)				$ 6.95
16	4390822		Screw (1 1/2``)		Appelez-nous	-
17	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.02
18	W10135693		Bracket, Light		Appelez-nous	-
19	4390823		Stop, Basket		Appelez-nous	-
20	4390621		Basket, Lower		Appelez-nous	-
21	W10258753		Diffuser, Air Upr		Appelez-nous	-
22	4-82573-002		Diffuser, Air Lwr   (Replaces: W10258754)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
