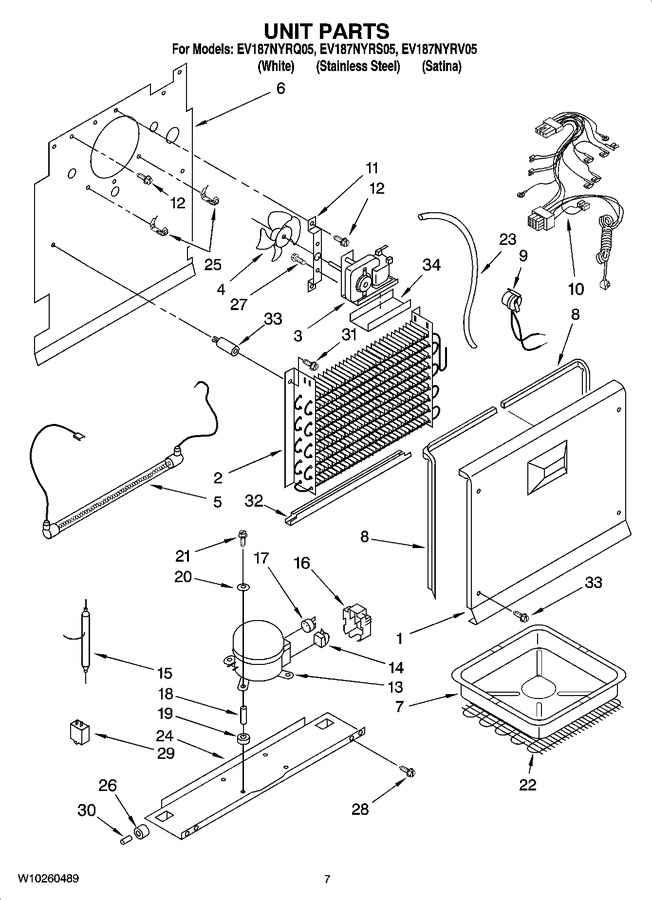

04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390662		Cover, Evaporator				$ 147.35
2	WP4-81546		Evaporator   (Replaces: 4357244)				$ 428.01
3	4357004		Motor, Fan		Appelez-nous	-
4	WPW10445742		Blade, Fan   (Replaces: 4356920)			Immediately	$ 10.05
5	W11175809		Heater, Defrost   (Replaces: W10179594)			Immediately	$ 175.34
6	4357123		Plate, Evaporator Mount		Appelez-nous	-
7	W10164623		Drain Pan		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator (right)				$ 239.00
8	4390664		Gasket, Cover Evaporator (left)				$ 89.11
9	WP1-81801-001		Bi-metal Defrost   (Replaces: 8210253)			Immediately	$ 123.69
10	8210394		Harness, Wiring (with Power Cord)		Appelez-nous	-
11	2-80028-101		Bracket, Motor   (Replaces: 4357129)				$ 93.98
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 63.25
13	W10309994		Compressor (includes Items 14,16,17, & 19)   (Replaces: 4356775)			Immediately	$ 612.90
14	4356738		Relay				$ 53.17
15	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
16	4356777		Cover		Appelez-nous	-
17	2-34286-021		Overload   (Replaces: 4356776)				$ 137.46
18	4356846		Sleeve				$ 14.29
19	4356335		Compressor Grommet		Appelez-nous	-
20	4356847		Washer		Appelez-nous	-
21	8210220		Screw, Compressor		Appelez-nous	-
22	W10451951		Condenser   (Replaces: 8210248)				$ 286.41
23	4357263		Heat, Exchanger				$ 123.66
24	8210202		Pan, Compressor		Appelez-nous	-
25	4356952		Clip, Thermostat		Appelez-nous	-
26	3-60315-001		Roller   (Replaces: 4390754)				$ 31.32
27	WP3400094		Screw   (Replaces: 4356970)				$ 7.93
28	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.78
29	3-35956-013		Capacitor   (Replaces: 4390674)				$ 115.35
30	4390755		Axle				$ 13.86
31	WP489491		Screw   (Replaces: 4390821)				$ 6.95
32	4356924		Shield Heater		Appelez-nous	-
33	4357020		Grommet		Appelez-nous	-
34	4357128		Shield, Motor				$ 108.77
