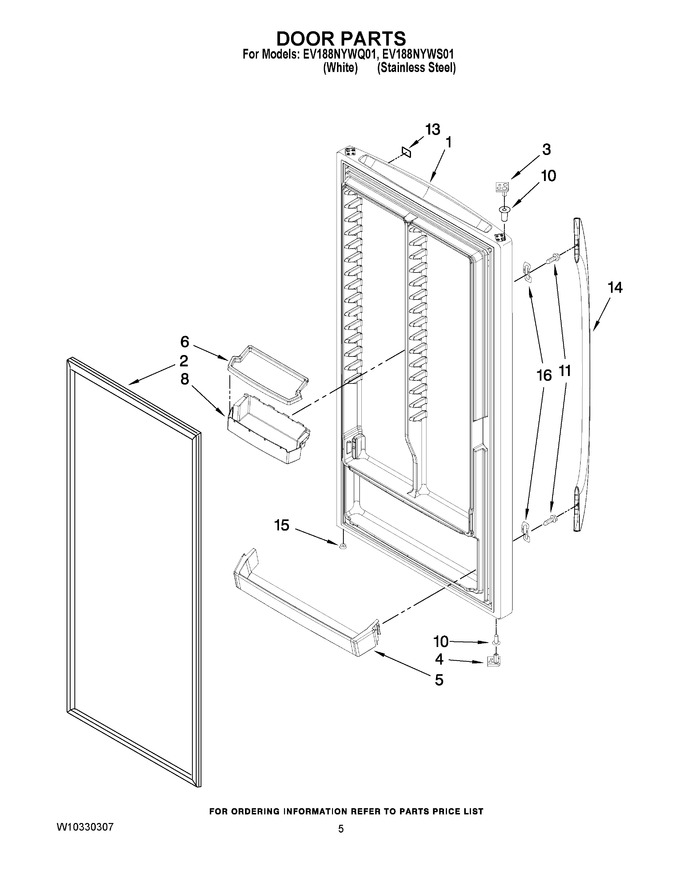

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-82827-057		Door Assembly (includes Interior Door Liner) (white)		Appelez-nous	-
1	4-82827-060		Door Assembly (includes Interior Door Liner) (stainless Steel)		Appelez-nous	-
2	4-65151-010		Gasket (black)				$ 196.81
2	WP4-65151-002		Gasket (white)   (Replaces: 8210339)				$ 377.13
3	8210401		Stop, Door (top) (white)		Appelez-nous	-
3	8210402		Stop, Door (top) (black)				$ 163.99
4	W10256537		Stop, Door (bottom)		Appelez-nous	-
4	8210400		Natural		Appelez-nous	-
5	8210379		Rail, Door (1) (lower)		Appelez-nous	-
6	8210383		Cover, Bin				$ 35.04
8	W10179592		Bin, Door (6)		Appelez-nous	-
10	4390731		Bushing (white)				$ 19.69
10	W10271519		Bushing (black)		Appelez-nous	-
11	WP489491		Screw   (Replaces: 489491)				$ 7.30
13	WP2213265		Nameplate (black)   (Replaces: 4390758)			Immediately	$ 93.18
13	4390656		Nameplate (white)		Appelez-nous	-
14	3-82596-003		Handle (brushed Aluminum)				$ 314.03
14	3-82596-002		Handle (white)				$ 265.43
15	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
16	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
