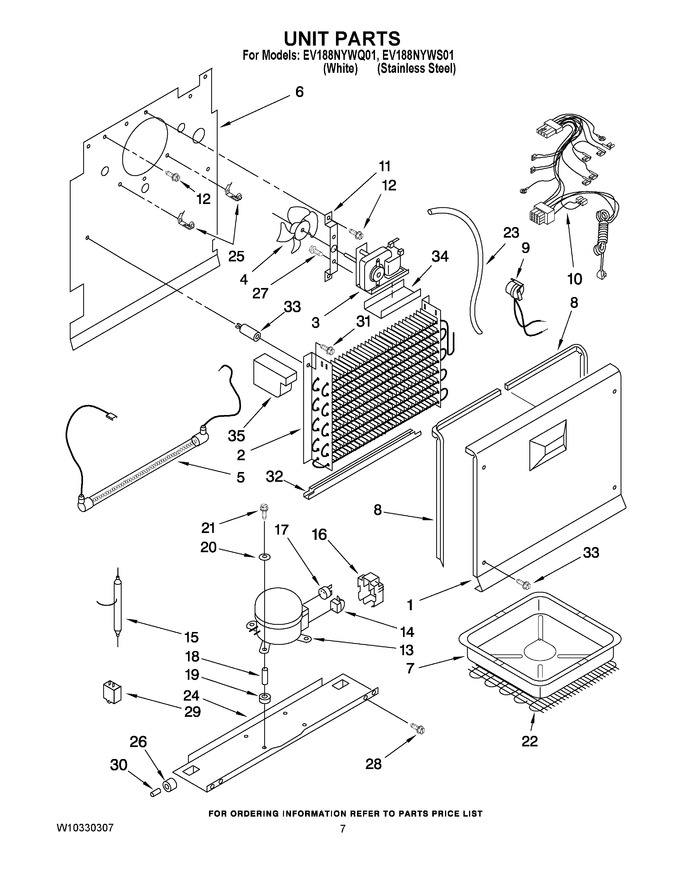

04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-82699-001 | Cover, Evaporator |
|
$ 92.84 | |||||
| 2 | WP4-81546 | Evaporator (Replaces: 4357244) |
|
$ 449.41 | |||||
| 3 | WP3-60336-001 | Motor, Fan (Replaces: 4390914) |
|
Immediately | $ 339.78 | ||||
| 4 | WPW10445742 | Blade, Fan (Replaces: 4390912) |
|
Immediately | $ 10.55 | ||||
| 5 | WP3-80405-003 | Heater, Defrost (Replaces: W10164625) |
|
$ 210.29 | |||||
| 6 | 4357123 | Plate, Evaporator Mount |
|
- | |||||
| 7 | W10271521 | Drain Pan |
|
- | |||||
| 8 | 4390664 | Gasket, Cover Evaporator (left) |
|
$ 93.57 | |||||
| 8 | 4390663 | Gasket, Cover Evaporator (right) |
|
$ 250.95 | |||||
| 9 | WP1-81801-001 | Bi-metal Defrost (Replaces: 8210253) |
|
Immediately | $ 129.87 | ||||
| 10 | 8210403 | Harness, Wiring (with Power Cord) |
|
- | |||||
| 11 | 2-80028-101 | Bracket, Fan (Replaces: 4356942) |
|
$ 98.68 | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 4356943) |
|
$ 66.41 | |||||
| 13 | W10309994 | Compressor (Replaces: 4-32972-143) |
|
Immediately | $ 643.55 | ||||
| 14 | WPW10189190 | Relay (Replaces: 4357156) |
|
Immediately | $ 131.29 | ||||
| 15 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 10.71 | ||||
| 16 | 4356777 | Cover |
|
- | |||||
| 17 | WP2183456 | Overload (Replaces: W10296789) |
|
$ 147.19 | |||||
| 18 | 4356846 | Sleeve |
|
$ 15.00 | |||||
| 19 | 4356335 | Compressor Grommet |
|
- | |||||
| 20 | 4356847 | Washer |
|
- | |||||
| 21 | 8210220 | Screw, Compressor |
|
- | |||||
| 22 | 4-82683-001 | Condenser |
|
$ 295.62 | |||||
| 23 | 8210225 | Heat, Exchanger |
|
- | |||||
| 24 | W10256546 | Pan, Compressor |
|
- | |||||
| 25 | 4356952 | Clip, Thermostat |
|
- | |||||
| 26 | 3-60315-001 | Roller (Replaces: 4390754) |
|
$ 32.89 | |||||
| 27 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 9.26 | |||||
| 28 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 8.33 | |||||
| 29 | 3-35956-013 | Capacitor (Replaces: 8210224) |
|
$ 121.12 | |||||
| 30 | 4390755 | Axle |
|
$ 13.86 | |||||
| 31 | WP489491 | Screw (Replaces: 4390821) |
|
$ 7.30 | |||||
| 32 | W10164624 | Shield, Heater |
|
- | |||||
| 33 | 4357020 | Grommet |
|
- | |||||
| 34 | 4357128 | Shield, Motor |
|
$ 114.21 | |||||
| 35 | 1-80252-101 | Block, Seal (Replaces: 8210261) |
|
$ 6.84 | |||||
| NI | N/P | Refrigerant Charge (5.8 Oz. (r-134a)) |
|
- |
