SELECT A DIAGRAM

01 - Cabinet Parts

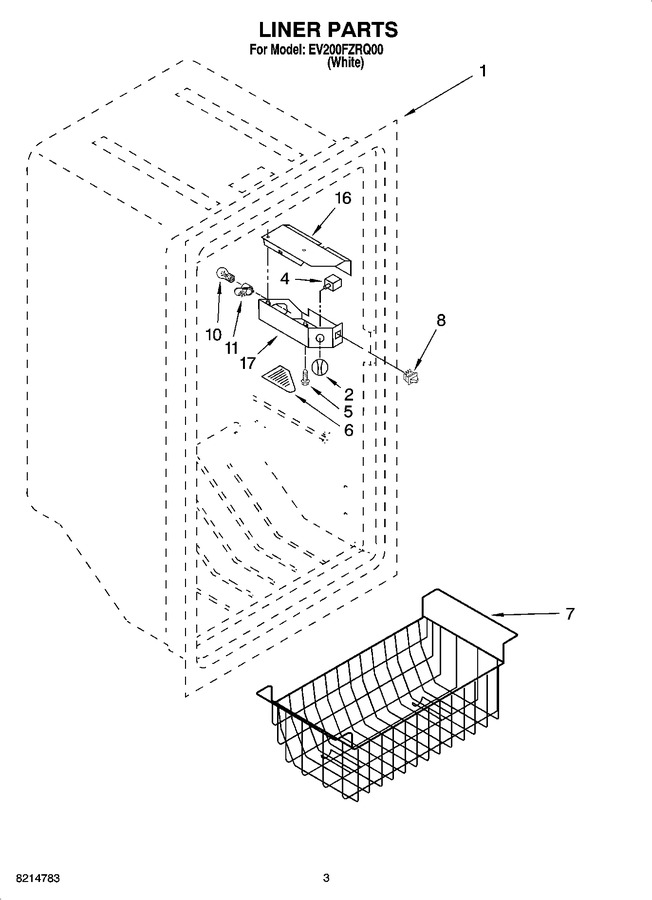

02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 30.10
4	WP4-83053-001		Thermostat   (Replaces: 8210395)				$ 254.87
5	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
6	8210349		Lens, Light				$ 33.01
7	4390698		Basket		Appelez-nous	-
8	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
10	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
11	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
16	8210351		Shield, Light				$ 42.03
17	8210406		Box, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
