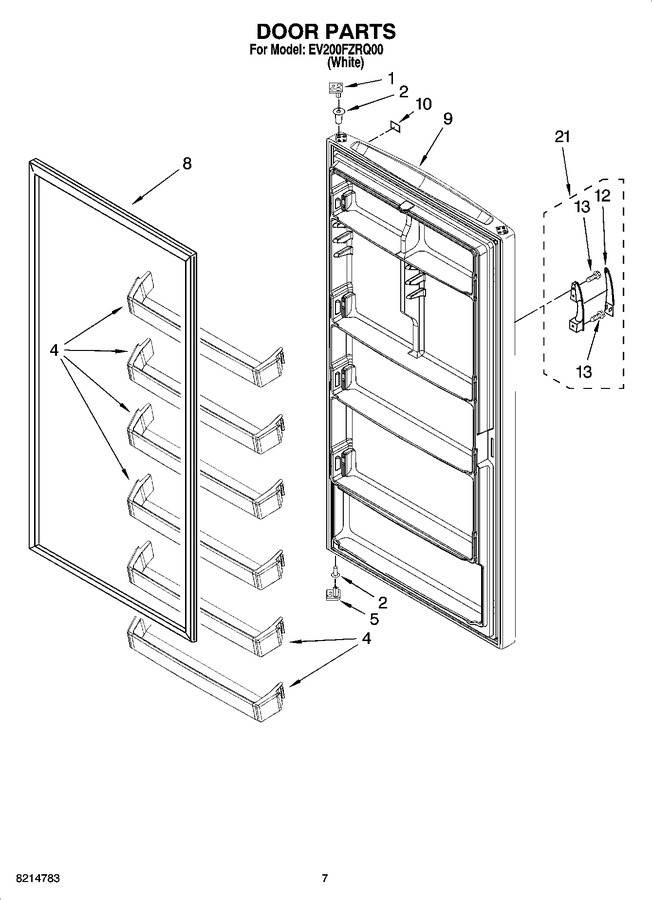

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 2 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 4 | WP4-65451-001 | Rail, Door (6) (Replaces: 8210404) |
|
$ 99.84 | |||||
| 5 | 8210400 | Stop, Door (lower) |
|
- | |||||
| 8 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 382.94 | |||||
| 9 | 8210361 | Door Assembly (includes Interior Door Liner) |
|
$ 771.69 | |||||
| 10 | 4390656 | Nameplate |
|
- | |||||
| 12 | 4390668 | Insert, Handle |
|
- | |||||
| 13 | WP489491 | Screw (Replaces: 4390669) |
|
$ 7.30 | |||||
| 21 | 4390667 | Handle Assembly (includes Items 12 & 13) |
|
- | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
