SELECT A DIAGRAM

01 - Cabinet Parts

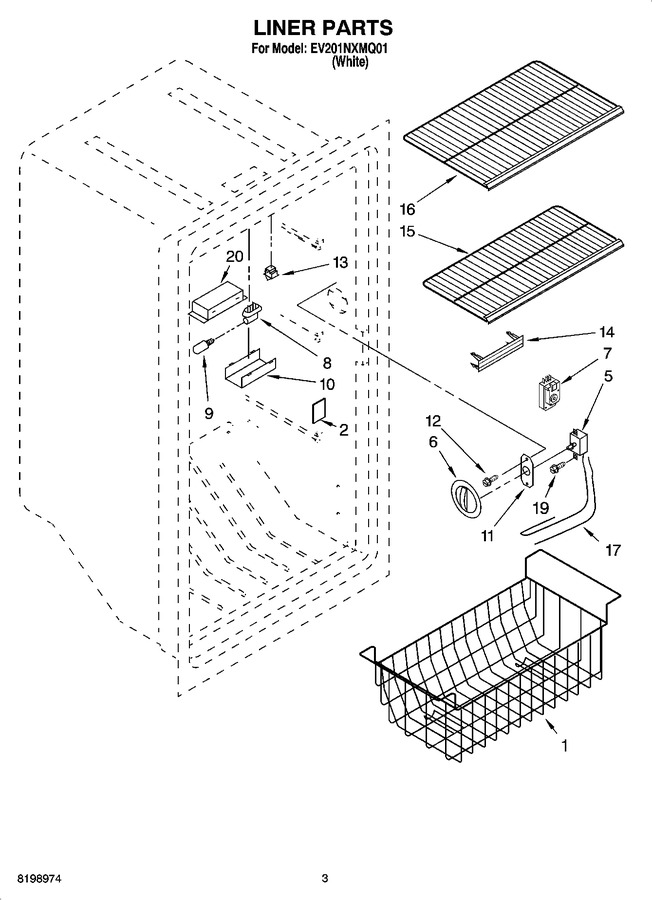

02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390632		Basket		Appelez-nous	-
2	1-60123-001		Cover, Icemaker Hole   (Replaces: 4390649)				$ 80.09
5	WP4-83053-003		Thermostat   (Replaces: 4390631)				$ 254.96
6	4390619		Knob, Thermostat		Appelez-nous	-
7	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 199.14
8	4390644		Lamp, Socket		Appelez-nous	-
9	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
10	4390743		Light Shield		Appelez-nous	-
11	1-81154		Thermostat, Plate   (Replaces: 4357041)				$ 15.00
12	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
13	W11384469		Light, Switch   (Replaces: 4390513)			Immediately	$ 39.09
14	WP3-80414-103		Vent Plug   (Replaces: 4357295)				$ 13.50
15	8210275		Shelf, Lower (2)				$ 63.66
16	8210274		Shelf, Upper (2)		Appelez-nous	-
17	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
19	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.72
20	4390744		Bracket, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
