SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

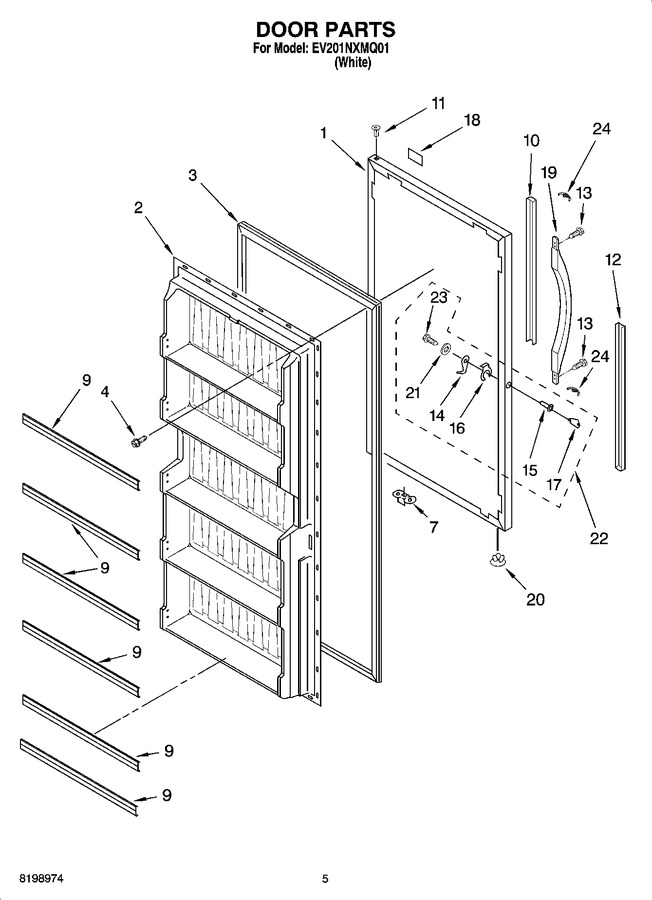

03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390934		Exterior Door (white (includes Insulation))		Appelez-nous	-
2	4390939		Interior Panel		Appelez-nous	-
3	WP4-81049-001		Gasket (white)   (Replaces: 4357120)				$ 382.56
4	4390598		Screw   (Replaces: 4357290)				$ 22.04
7	4390695		Door Stop		Appelez-nous	-
9	4390702		Door Rail		Appelez-nous	-
10	4390856		Trim, Handle (top)		Appelez-nous	-
11	4390731		Bushing				$ 19.69
12	4390857		Trim, Handle (bottom)		Appelez-nous	-
13	WP489491		Screw   (Replaces: 4390669)				$ 7.30
14	4357289		Bolt-lock				$ 22.23
15	4357145		Lock, Body   (Replaces: 4356839)				$ 27.79
16	4356842		Spring Clip				$ 12.24
17	WP4356840		Key   (Replaces: 4356840)				$ 11.28
18	4390670		Nameplate		Appelez-nous	-
19	3-82596-002		Handle Kit (includes Items 10,12,18 & 24)   (Replaces: 4390747)				$ 265.43
20	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 11.34
21	4356992		Washer		Appelez-nous	-
22	4357145		Lock Assembly (includes Items 14,15,16,17,21 And 23)				$ 27.79
23	WP489478		Screw   (Replaces: 4356843)				$ 8.18
24	4390935		Clip, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
