SELECT A DIAGRAM

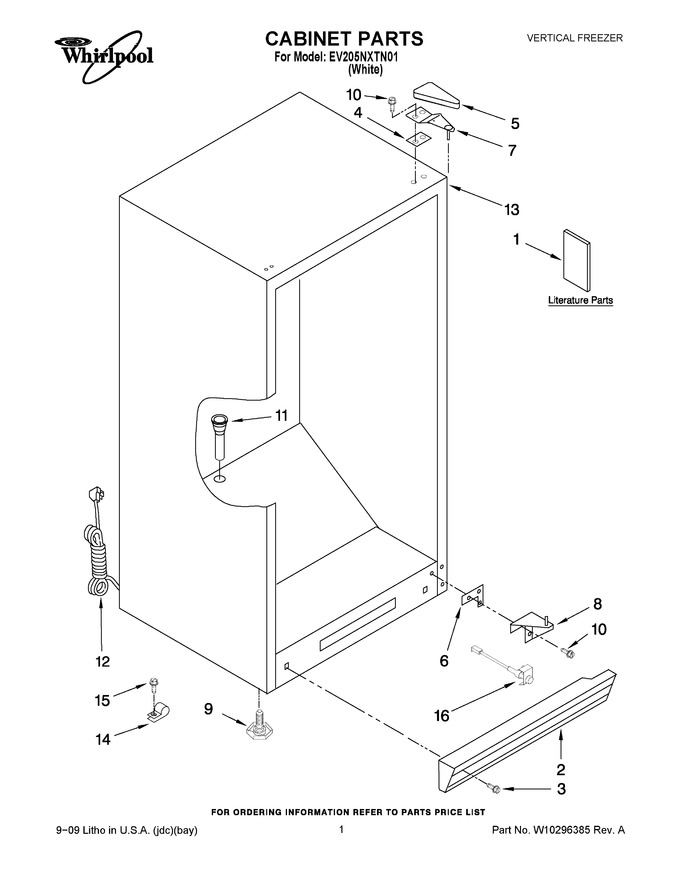

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10243404		Energy Label/tag		Appelez-nous	-
1	8210432		Owners Manual		Appelez-nous	-
2	W10296397		Grille		Appelez-nous	-
3	WP489478		Screw   (Replaces: 4357243)				$ 8.18
4	4390489		Shim, Hinge				$ 7.30
5	W10254179		Cover, Hinge		Appelez-nous	-
6	4390489		Shim, Bottom				$ 7.30
7	W10260541		Hinge, Top				$ 51.02
8	W10260542		Hinge, Bottom		Appelez-nous	-
9	WP3-82710-001		Leveler Leg Kit   (Replaces: W10177676)			Immediately	$ 20.32
10	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
11	W10164544		Grommet, Drain		Appelez-nous	-
12	4-82830-001		Cord, Power (w/wiring Harness)   (Replaces: W10296399)		Appelez-nous	-
13	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	4357159		Clamp, Tube		Appelez-nous	-
15	WP489478		Screw   (Replaces: 4357243)				$ 8.18
16	4390905		Light, Power Warn		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
