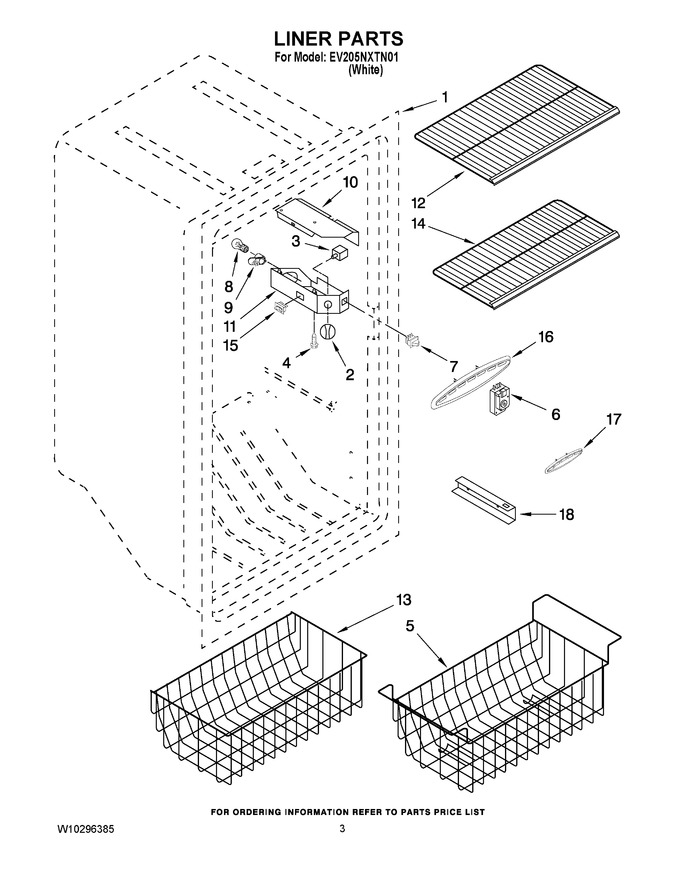

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 30.10
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 256.73
4	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
5	4390632		Basket, Wire		Appelez-nous	-
6	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 199.14
7	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
8	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
9	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
10	8210351		Shield, Light				$ 42.03
11	8210349		Box, Control				$ 33.01
12	WP4-82634-001		Shelf, Upper Wire   (Replaces: W10164533)				$ 155.55
13	4390933		Basket, Wire		Appelez-nous	-
14	WP4-82977-001		Shelf, Lower Wire   (Replaces: W10258752)				$ 152.75
15	W10164514		Switch, Alarm		Appelez-nous	-
16	W10258753		Air Diffuser, Upr		Appelez-nous	-
17	4-82573-002		Air Diffuser, Lwr (illuminated)   (Replaces: W10258754)		Appelez-nous	-
18	4390820		Rail, Basket Lt				$ 77.44
18	4390819		Rail, Basket Rt		Appelez-nous	-
