SELECT A DIAGRAM

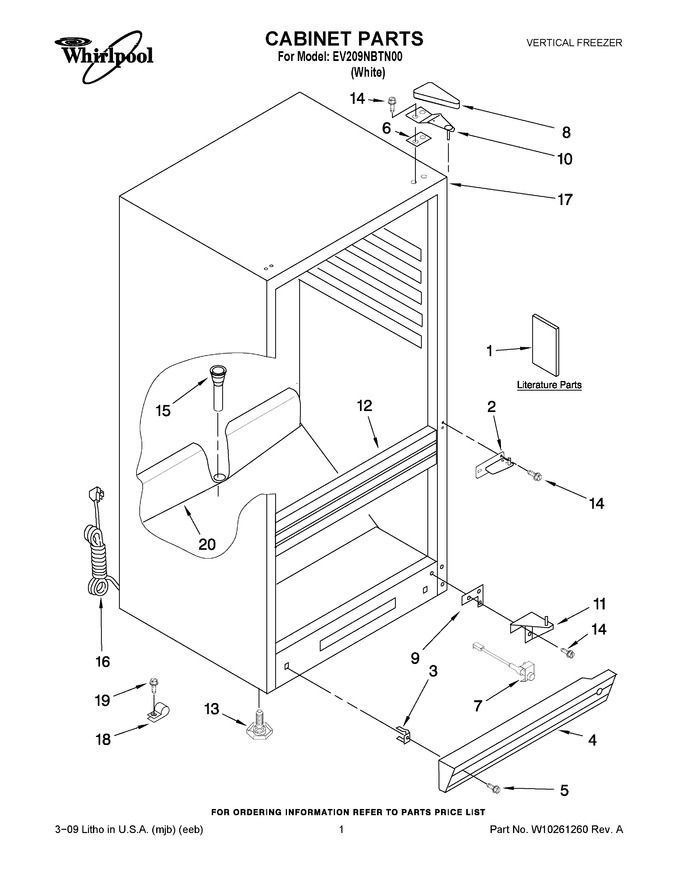

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10164586		Owners Manual		Appelez-nous	-
1	W10164585		Energy Label/tag		Appelez-nous	-
1	W10183363		Instructions, Field Installable Ice Maker		Appelez-nous	-
2	W10164537		Hinge, Center		Appelez-nous	-
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
4	W10260289		Grille		Appelez-nous	-
5	W10709795		Screw   (Replaces: 4390511)				$ 13.79
6	4390489		Shim, Top				$ 7.30
7	4390905		Power Light Assembly		Appelez-nous	-
8	W10254179		Cover, Hinge		Appelez-nous	-
9	4390489		Shim, Bottom				$ 7.30
10	W10260541		Hinge, Top				$ 51.02
11	W10260542		Hinge, Bottom		Appelez-nous	-
12	W10189183		Rail, Mullion				$ 172.68
13	WP3-82710-001		Leg, Leveler(2)   (Replaces: W10177676)			Immediately	$ 20.32
14	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
15	W10164544		Grommet, Drain		Appelez-nous	-
16	W10164631		Cord, Power		Appelez-nous	-
18	4357159		Clamp, Tube		Appelez-nous	-
19	WP489478		Screw   (Replaces: 4357243)				$ 8.18
20	W10164550		Shield, Drain Trough		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
