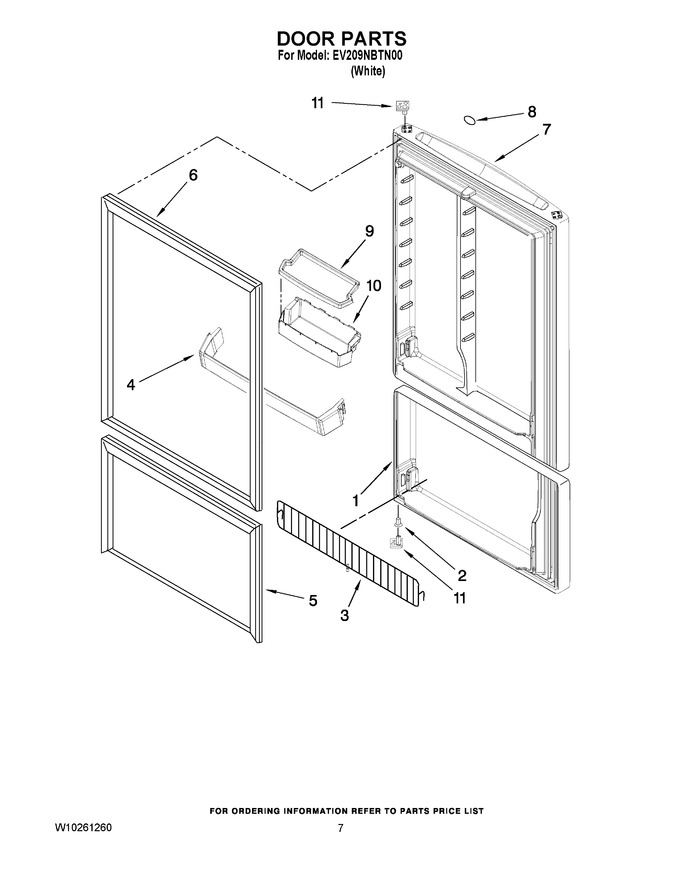

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10261371		Door Assy, Lwr (includes Interior Door Liner)		Appelez-nous	-
2	W10207408		Bushing, Hinge		Appelez-nous	-
3	W10164620		Rail, Door (wire)		Appelez-nous	-
4	WP4-65451-001		Rail, Door (1)   (Replaces: 8210404)				$ 99.84
5	W10261374		Gasket, Lower Door				$ 346.31
6	WP4-65151-008		Gasket, Door (upper)   (Replaces: W10261373)				$ 349.35
7	W10261370		Door Assy, Upr (includes Interior Door Liner)		Appelez-nous	-
8	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
9	W10164622		Cover, Door Bin (4)		Appelez-nous	-
10	WP4-82576-001		Bin, Door   (Replaces: W10164621)				$ 83.29
11	W10261375		Stop, Door (2)		Appelez-nous	-
