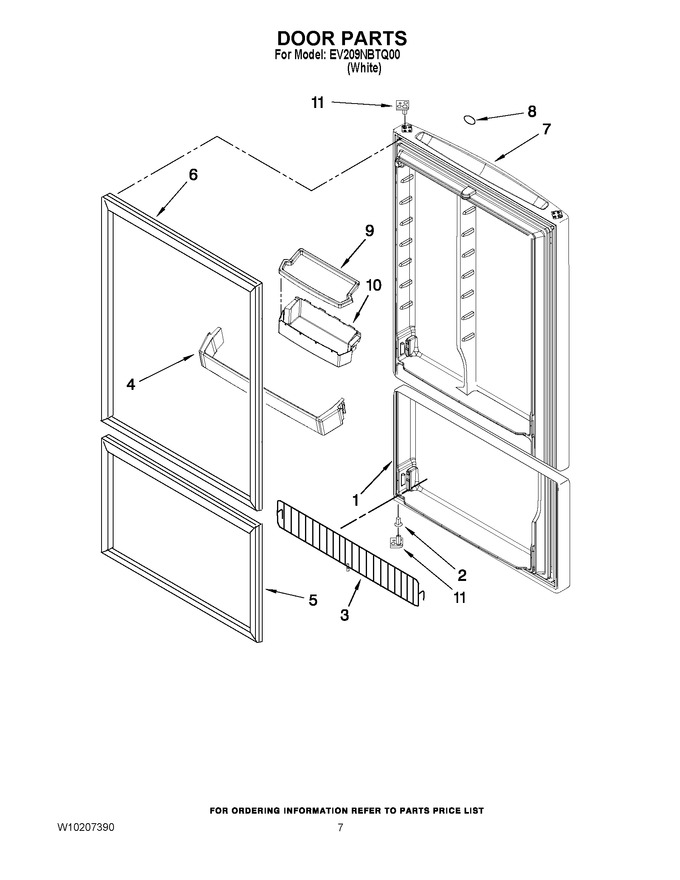

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10164616 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 2 | W10207408 | Bushing, Hinge |
|
- | |||||
| 3 | W10164620 | Rail, Door (wire) |
|
- | |||||
| 4 | WP4-65451-001 | Rail, Door (1) (Replaces: 8210404) |
|
$ 99.84 | |||||
| 5 | W10164618 | Gasket, Lower Door |
|
$ 149.32 | |||||
| 6 | 4-65151-006 | Gasket, Door (upper) (Replaces: W10164617) |
|
$ 331.84 | |||||
| 7 | W10164614 | Door Assy. (top) (includes Interior Door Liner) |
|
$ 451.30 | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 9 | W10164622 | Cover, Door Bin (4) |
|
- | |||||
| 10 | WP4-82576-001 | Bin, Door (4) (Replaces: W10164621) |
|
$ 83.29 | |||||
| 11 | 8210400 | Stop, Door (2) |
|
- |
