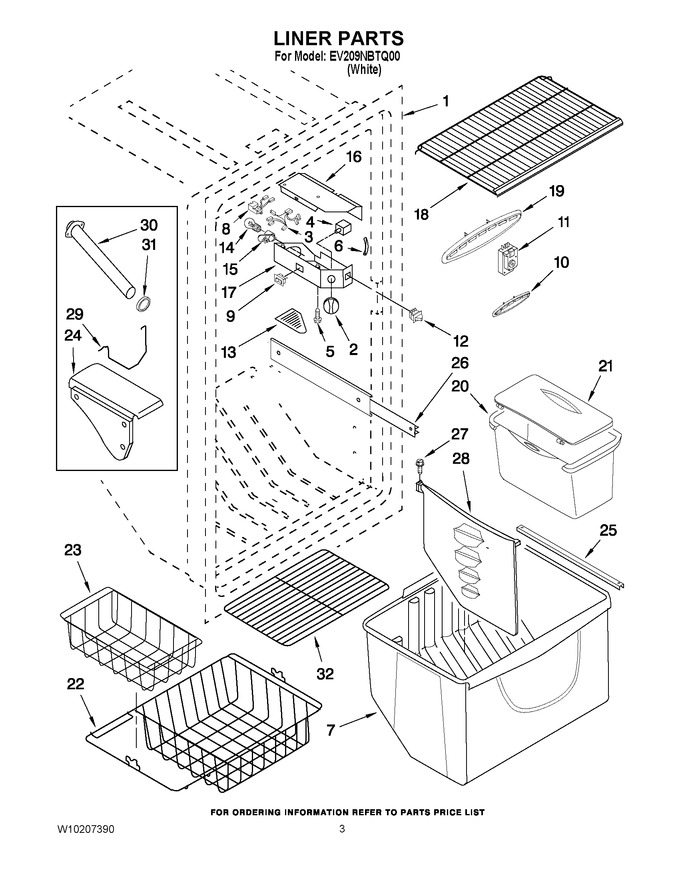

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 30.10
3	W10164510		Harness, Wire (control Box)		Appelez-nous	-
4	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 256.73
5	W10709795		Screw   (Replaces: 4390511)				$ 13.79
6	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 8.35
7	W10164543		Basket, Large		Appelez-nous	-
8	W10164512		Alarm, Door Ajar		Appelez-nous	-
9	W10164530		Switch, Alarm		Appelez-nous	-
10	W10164560		Baffle, Short (2)		Appelez-nous	-
11	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 199.14
12	WP4387911		Switch, Light   (Replaces: W10164501)			Immediately	$ 41.64
13	8210349		Lens, Light				$ 33.01
14	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
15	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
16	8210351		Shield, Light				$ 42.03
17	W10164503		Box, Control		Appelez-nous	-
18	WP4-82634-001		Shelf, Wire (3)   (Replaces: W10164533)				$ 155.55
19	W10164558		Baffle, Long (1)		Appelez-nous	-
20	W10164561		Bin, Ice		Appelez-nous	-
21	W10164562		Cover, Ice Bin				$ 9.86
22	W10164565		Basket (non-i/m Unit)		Appelez-nous	-
23	W10164583		Basket, Divider (non-icemaker)		Appelez-nous	-
24	W10164566		Cover (i/m Units)		Appelez-nous	-
25	W10164584		Support, Basket		Appelez-nous	-
26	W10164570		Slide, Basket				$ 158.76
27	4356491		Screw		Appelez-nous	-
28	W10183189		Divider, Basket				$ 18.13
29	W10164580		Arm, Shut-off (i/m Model)		Appelez-nous	-
30	W10164581		Tube, Fill (i/m Model)		Appelez-nous	-
31	W10164582		Gasket, Fill Tube		Appelez-nous	-
32	W10164564		Shelf, Half (i/m Units)		Appelez-nous	-
NI	W11729596		Ice Maker Field Installable (ice Maker (eckm94))   (Replaces: 8560)			Immediately	$ 150.98
