SELECT A DIAGRAM

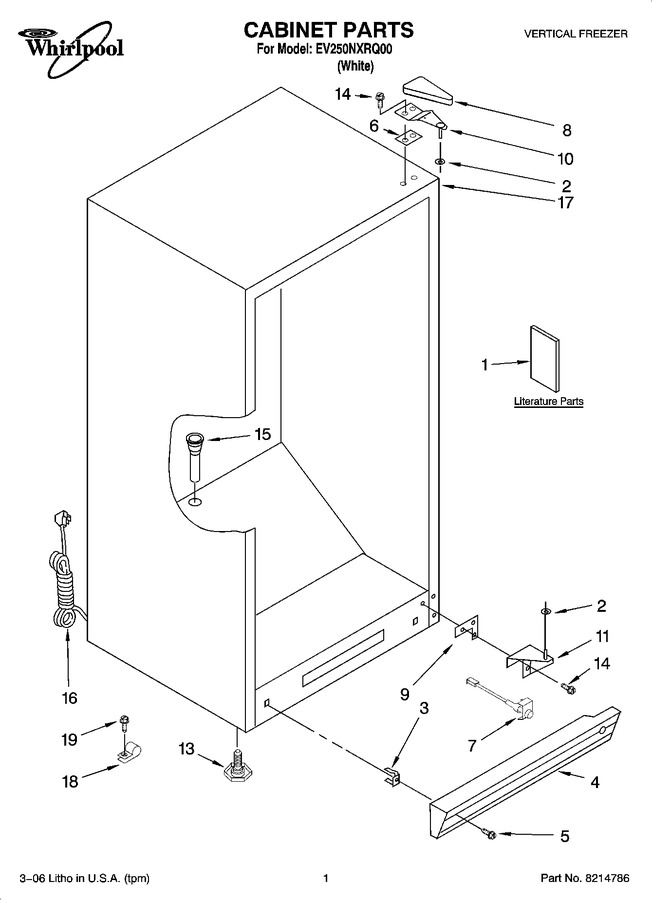

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210432		Owners Manual		Appelez-nous	-
1	4390855		Energy Label/tag		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4390520)				$ 10.57
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 10.95
4	8210272		Grille		Appelez-nous	-
5	WP489478		Screw   (Replaces: 4357243)				$ 7.75
6	4390489		Shim, Hinge				$ 6.95
7	4390905		Power Light Assembly		Appelez-nous	-
8	4357121		Cover, Hinge		Appelez-nous	-
9	4390489		Shim, Bottom				$ 6.95
10	2-81016-105		Hinge, Top   (Replaces: 8210222)				$ 41.18
11	8210238		Hinge, Bottom				$ 42.53
13	W11117769		Leg, Leveler   (Replaces: 4390866)			Immediately	$ 18.45
14	WP8204624		Screw   (Replaces: 4356830)				$ 16.65
15	4357268		Grommet, Drain		Appelez-nous	-
16	8210375		Cord, Power		Appelez-nous	-
18	488946		Clamp, Tube   (Replaces: 4356643)				$ 20.45
19	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
