SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

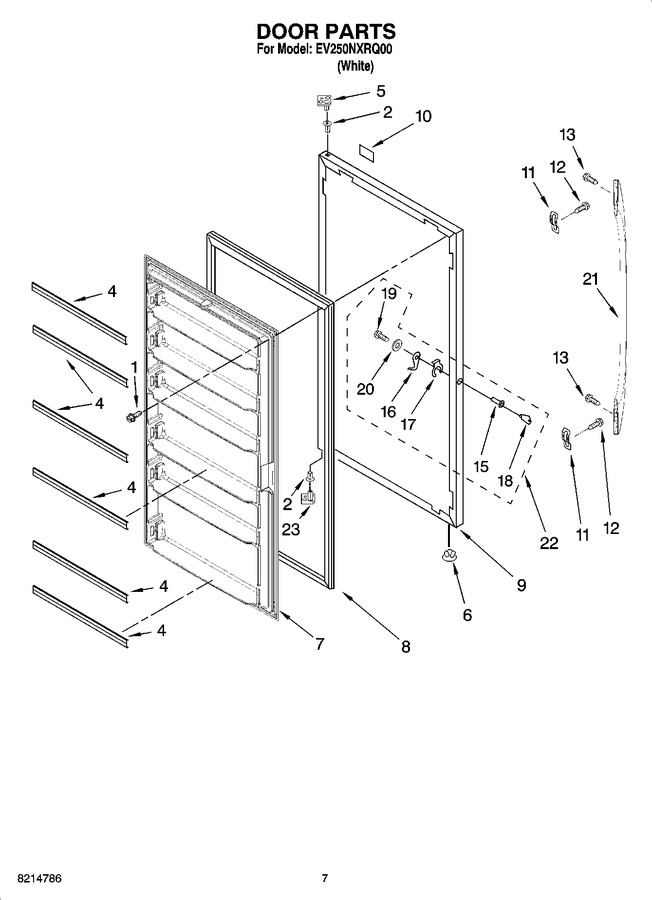

04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw Kit (50 Pcs)   (Replaces: 4357290)				$ 20.99
2	4390659		Bushing, Hinge		Appelez-nous	-
4	W10450648		Rail, Door (6)   (Replaces: 4390805)		Appelez-nous	-
5	8210401		Stop, Door (upper)		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 10.80
7	8210371		Door, Interior		Appelez-nous	-
8	WP4-81679-001		Gasket, Door   (Replaces: 4390803)				$ 281.40
9	8210366		Door, Exterior		Appelez-nous	-
10	4390670		Nameplate		Appelez-nous	-
11	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
12	WP489491		Screw   (Replaces: 489491)				$ 6.95
13	8533920		Screw				$ 5.27
15	4357145		Lock, Body   (Replaces: 4356839)				$ 26.47
16	4357289		Lock, Bolt				$ 22.23
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 10.74
19	WP489478		Screw   (Replaces: 4356843)				$ 7.75
20	4356992		Washer		Appelez-nous	-
21	2313345W		Handle		Appelez-nous	-
22	4357145		Lock Assembly (includes Items 15, 16, 17, 18, 19 & 20)				$ 26.47
23	8210400		Stop, Door (lower)		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
