01 - Cabinet Parts


02 - Liner Parts

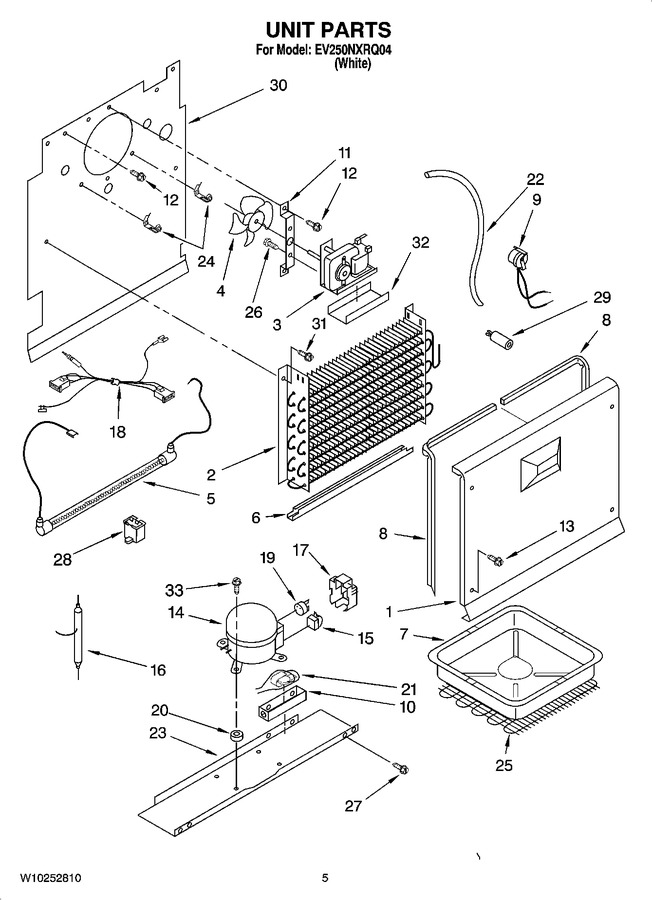

03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390662		Cover, Evaporator				$ 147.35
2	WP4390862		Evaporator   (Replaces: 4390862)				$ 272.82
3	4357004		Fan Motor		Appelez-nous	-
4	WPW10445742		Fan Blade   (Replaces: 4356920)			Immediately	$ 10.55
5	WP3-82089-001		Heater, Defrost   (Replaces: 4390861)				$ 162.26
6	W10201502		Shield, Heater		Appelez-nous	-
7	W10164623		Drain Pan		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator (right)				$ 250.95
8	4390664		Gasket, Cover Evaporator (left)				$ 93.57
9	4390863		Bi-metal Defrost				$ 39.46
10	4390708		Box, Control		Appelez-nous	-
11	2-80028-101		Bracket, Motor   (Replaces: 4357129)				$ 98.68
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 66.41
13	WP3-24004-109		Screw (4)   (Replaces: 4357110)				$ 9.14
14	W10309995		Compressor (includes Items 15,16,17,19 & 21)   (Replaces: 4390806)				$ 704.53
15	4356738		Relay				$ 53.17
16	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
17	4356777		Cover		Appelez-nous	-
18	4-81785-001		Harness, Fan   (Replaces: 8210376)		Appelez-nous	-
19	4390808		Overload		Appelez-nous	-
20	4356335		Compressor Grommet		Appelez-nous	-
21	W10164514		Alarm (buzzer)		Appelez-nous	-
22	4357263		Heat, Exchanger				$ 123.66
23	4390807		Pan, Compressor		Appelez-nous	-
24	4356952		Clip, Thermostat		Appelez-nous	-
25	8210372		Condenser		Appelez-nous	-
26	WP3400094		Screw   (Replaces: 4356970)				$ 9.26
27	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
28	3-35956-013		Capacitor   (Replaces: 8210224)				$ 121.12
29	4357020		Grommet		Appelez-nous	-
30	4390858		Plate, Evaporator Mount		Appelez-nous	-
31	WP3-24004-109		Screw   (Replaces: 4357110)				$ 9.14
32	4357128		Shield, Motor				$ 114.21
33	8210220		Screw		Appelez-nous	-
