SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

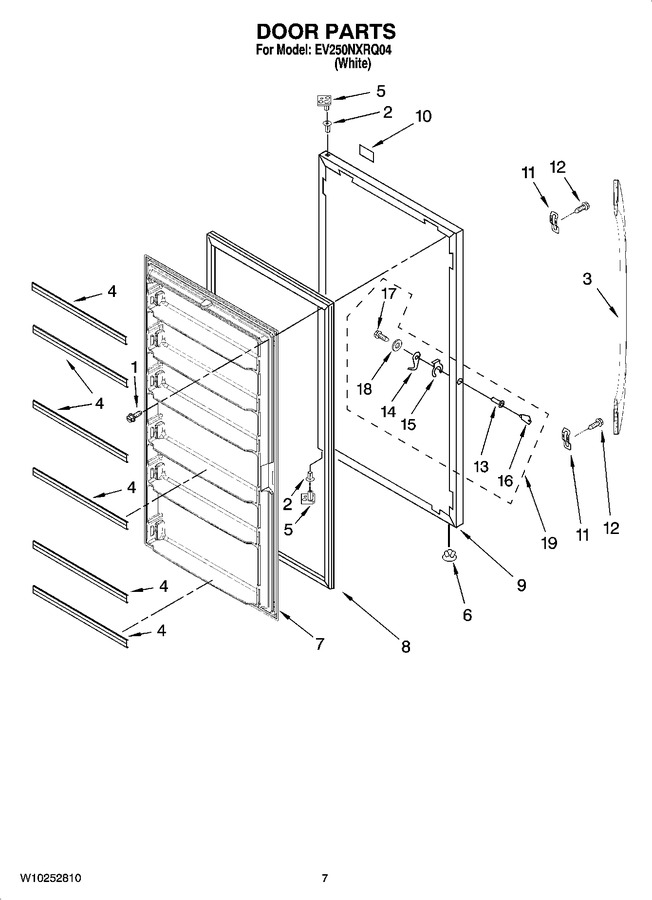

04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw Kit (50 Pcs)   (Replaces: 4357290)				$ 22.04
2	4390731		Bushing, Hinge				$ 19.69
3	W10201503		Handle		Appelez-nous	-
4	W10450648		Rail, Door (6)   (Replaces: 4390805)		Appelez-nous	-
5	8210400		Stop, Door		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
7	4390802		Door, Interior		Appelez-nous	-
8	WP4-81679-001		Gasket, Door   (Replaces: 4390803)				$ 281.40
9	8210366		Door, Exterior		Appelez-nous	-
10	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
11	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
12	WP489491		Screw   (Replaces: 489491)				$ 7.30
13	4357145		Lock, Body   (Replaces: 4356839)				$ 27.79
14	4357289		Lock, Bolt				$ 22.23
15	4356842		Spring Clip				$ 12.24
16	WP4356840		Key   (Replaces: 4356840)				$ 11.28
17	WP489478		Screw   (Replaces: 4356843)				$ 8.18
18	4356992		Washer		Appelez-nous	-
19	4357145		Lock Assembly (includes Items 13, 14, 15, 16, 17 & 18)				$ 27.79
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	72017		Brush Touch-up Kit (white)			Immediately	$ 12.30
	350930		Enamel, White (13 Oz. Spray Can)			Immediately	$ 40.12
	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77

    View Diagram in Separate Window       Print Part List
