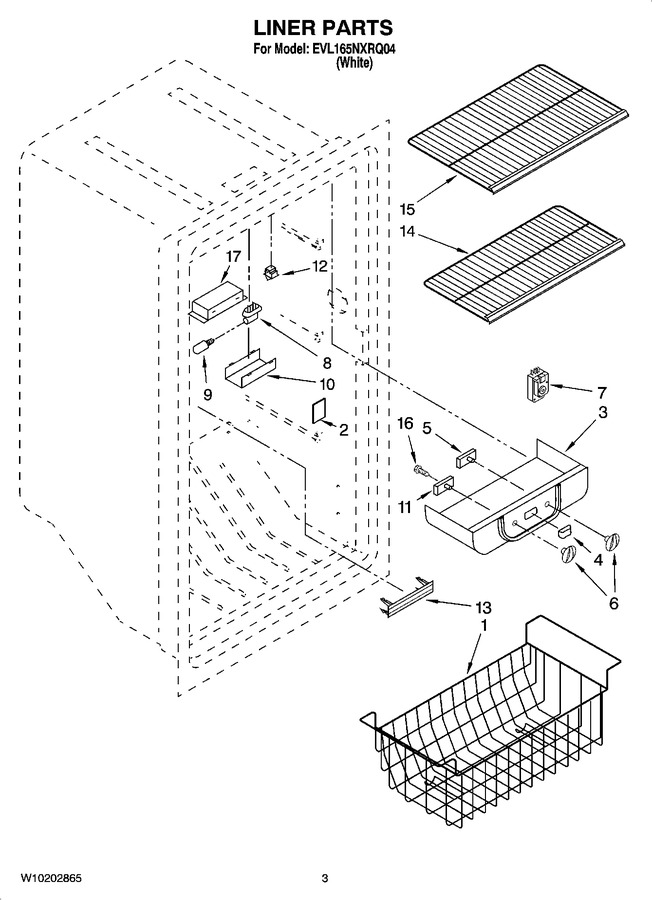

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390621		Basket		Appelez-nous	-
2	1-60123-001		Cover, Icemaker Hole   (Replaces: 4390649)				$ 80.09
3	8210204		Housing, Control		Appelez-nous	-
4	8210203		Switch, Control (illuminated)		Appelez-nous	-
5	8210208		Thermostat (freezer)		Appelez-nous	-
6	8210206		Knob, Thermostat		Appelez-nous	-
7	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 199.14
8	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
9	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
10	4390743		Light Shield		Appelez-nous	-
11	8210207		Thermostat (refrigerator)				$ 110.22
12	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
13	WP3-80414-103		Vent Plug   (Replaces: 4357295)				$ 13.50
14	4-82315-001		Shelf, Lower (2)   (Replaces: 8210346)				$ 352.45
15	4-82315-001		Shelf, Top (1)   (Replaces: 8210346)				$ 352.45
16	W11233072		Screw   (Replaces: 4357043)			Immediately	$ 14.72
17	4390744		Bracket, Light		Appelez-nous	-
