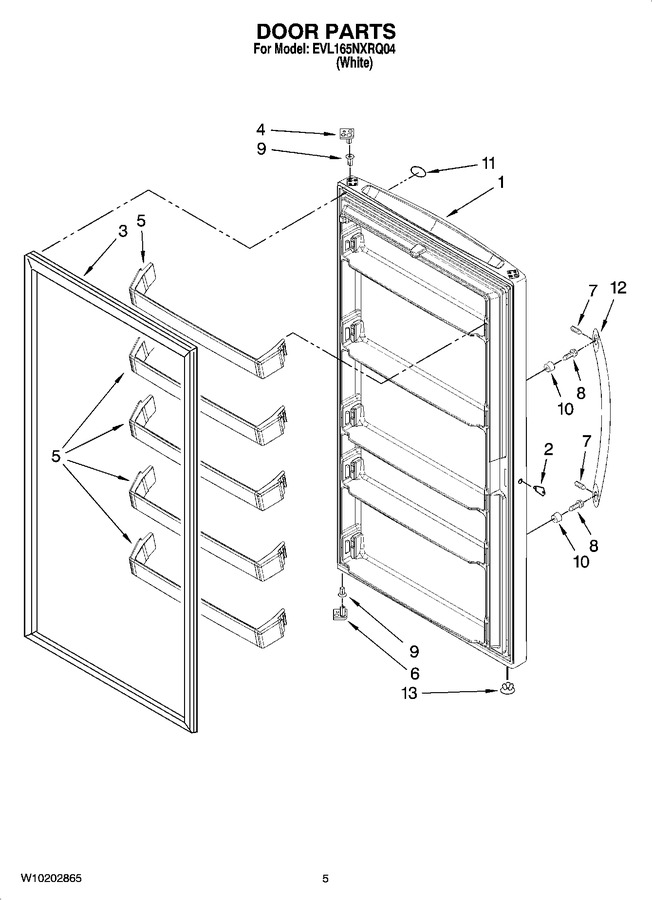

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210358 | Door Assembly (white (includes Interior Door Liner)) |
|
- | |||||
| 2 | WP4356840 | Key, Door (Replaces: 4356840) |
|
$ 11.28 | |||||
| 3 | WP4-65151-001 | Gasket (white) (Replaces: 8210340) |
|
$ 354.52 | |||||
| 4 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 5 | W10737497 | Rail, Door (5) (Replaces: 8210385) |
|
$ 96.74 | |||||
| 6 | 8210400 | Stop, Door (lower) |
|
- | |||||
| 7 | 8533976 | Screw, Set |
|
$ 8.35 | |||||
| 8 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 9 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 10 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 11 | WP2213265 | Nameplate (white) (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 12 | WP2254600W | Handle Assembly (includes Item 8) (Replaces: 2317777W) |
|
$ 246.90 | |||||
| 13 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 |
