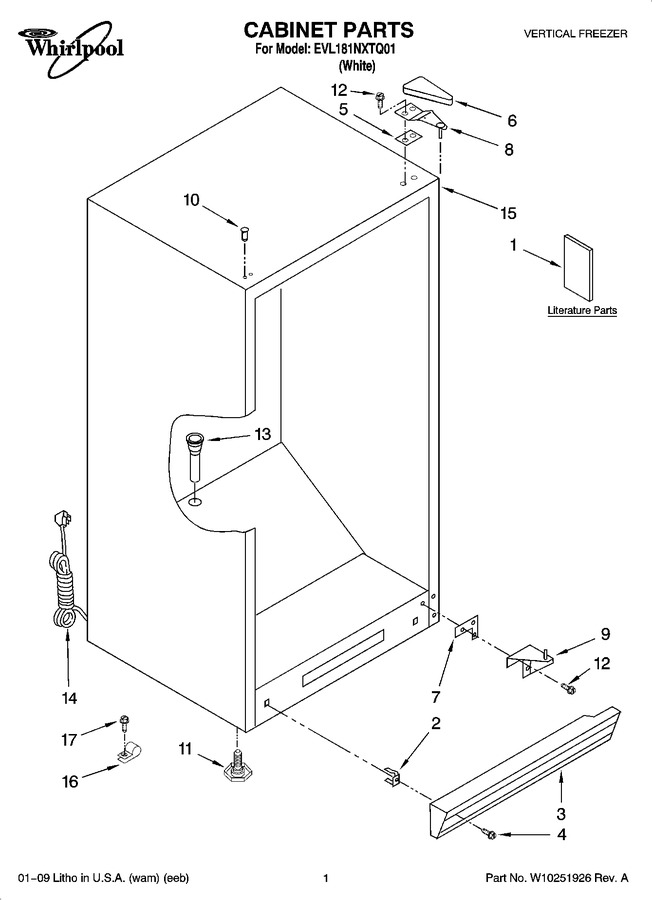

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10180511 | Energy Label/tag |
|
- | |||||
| 1 | 8210432 | Owners Manual |
|
- | |||||
| 2 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 10.95 | ||||
| 3 | 8210293 | Grille |
|
$ 40.70 | |||||
| 4 | WP489478 | Screw (Replaces: 4357243) |
|
$ 7.75 | |||||
| 5 | 4390489 | Shim, Hinge |
|
$ 6.95 | |||||
| 6 | 4357279 | Cover, Hinge |
|
$ 46.56 | |||||
| 7 | 4390489 | Shim, Bottom |
|
$ 6.95 | |||||
| 8 | 2-81016-105 | Hinge, Top (Replaces: W10179593) |
|
$ 41.18 | |||||
| 9 | 8210235 | Hinge, Bottom |
|
- | |||||
| 10 | WP2189000 | Plug (white) (Replaces: 4390596) |
|
Immediately | $ 7.40 | ||||
| 11 | WP3-82710-001 | Leveler Leg Kit (Replaces: W10177675) |
|
Immediately | $ 20.32 | ||||
| 12 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 16.65 | |||||
| 13 | W10164544 | Grommet, Drain |
|
- | |||||
| 14 | 8210403 | Cord, Power (w/wiring Harness) |
|
- | |||||
| 16 | 488946 | Clamp, Tube (Replaces: 4356643) |
|
$ 20.45 | |||||
| 17 | 3-24004-049 | Screw (Replaces: 4356583) |
|
- |
