SELECT A DIAGRAM

01 - Cabinet Parts

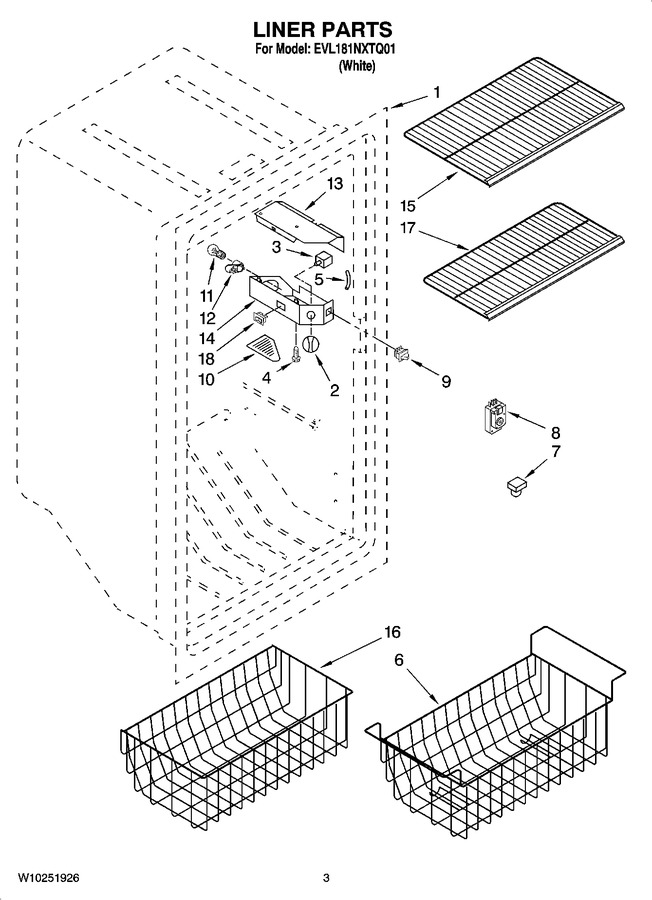

02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 30.10
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 256.73
4	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
5	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 8.35
6	4390621		Basket, Wire		Appelez-nous	-
7	W10179590		Stop, Basket		Appelez-nous	-
8	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 199.14
9	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
10	8210349		Lens, Light				$ 33.01
11	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
12	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
13	8210351		Shield, Light				$ 42.03
14	W10135693		Box, Control		Appelez-nous	-
15	WP4-60638-001		Shelf, Upper Wire   (Replaces: 8210436)				$ 144.35
16	4390621		Basket, Wire		Appelez-nous	-
17	8210437		Shelf, Lower Wire		Appelez-nous	-
18	8210370		Switch, Alarm (illuminated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
