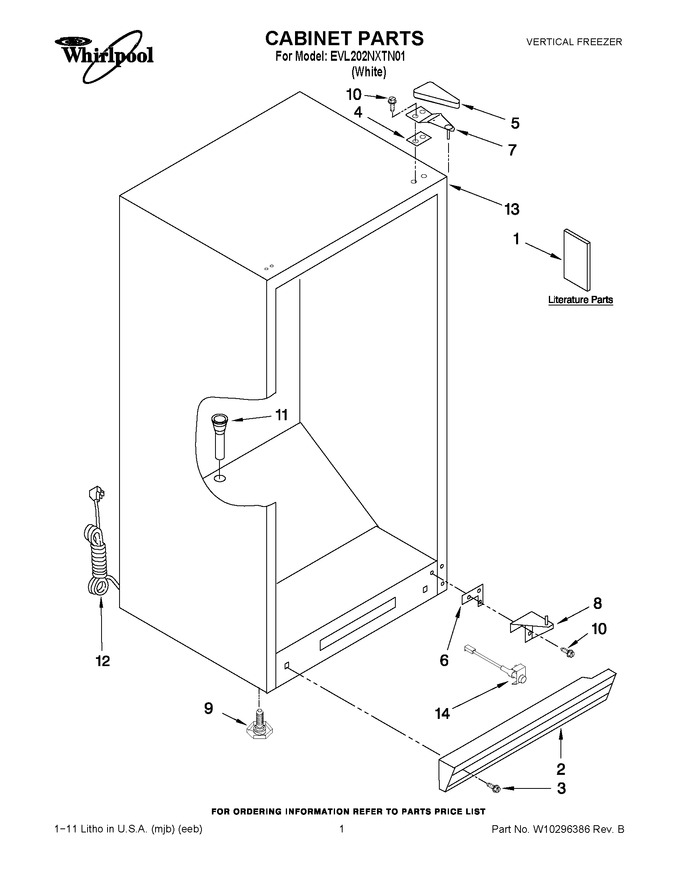

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10243404 | Energy Label/tag |
|
- | |||||
| 1 | 8210432 | Owners Manual |
|
- | |||||
| 2 | W10260289 | Grille |
|
- | |||||
| 3 | WP489478 | Screw (Replaces: 4357243) |
|
$ 8.18 | |||||
| 4 | 4390489 | Shim, Hinge |
|
$ 7.30 | |||||
| 5 | W10254179 | Cover, Hinge |
|
- | |||||
| 6 | 4390489 | Shim, Bottom |
|
$ 7.30 | |||||
| 7 | W10260541 | Hinge, Top |
|
$ 51.02 | |||||
| 8 | W10260542 | Hinge, Bottom |
|
- | |||||
| 9 | WP3-82710-001 | Leveler Leg Kit (Replaces: W10177675) |
|
Immediately | $ 20.32 | ||||
| 10 | W10201504 | Screw |
|
- | |||||
| 11 | W10164544 | Grommet, Drain |
|
- | |||||
| 12 | W10243406 | Cord, Power (w/wiring Harness) |
|
- | |||||
| 13 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 14 | 4390905 | Light, Pwr Warning |
|
- |
