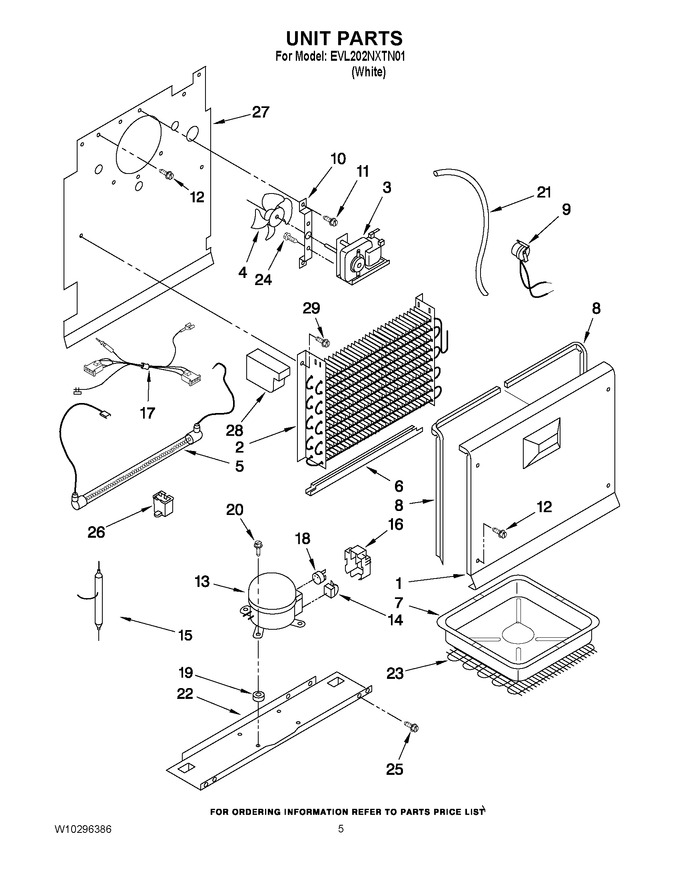

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390662		Cover, Evaporator				$ 147.35
2	WP4-81546		Evaporator   (Replaces: 4357244)				$ 449.41
3	WP3-60336-001		Motor, Fan   (Replaces: 4390914)			Immediately	$ 339.78
4	WPW10445742		Blade, Fan   (Replaces: 4390912)			Immediately	$ 10.55
5	WP3-80405-003		Heater, Defrost   (Replaces: W10164625)				$ 210.29
6	W10164624		Shield, Heater		Appelez-nous	-
7	W10164623		Pan, Drain		Appelez-nous	-
8	4390664		Gasket, Cover Evaporator (left)				$ 93.57
8	4390663		Gasket, Cover Evaporator (right)				$ 250.95
9	WP1-81801-001		Bi-metal Defrost   (Replaces: 8210253)			Immediately	$ 129.87
10	2-80028-101		Bracket, Motor   (Replaces: 4357129)				$ 98.68
11	60001022		Screw, Motor   (Replaces: 4356943)				$ 66.41
12	WP3-24004-109		Screw (4)   (Replaces: 4357110)				$ 9.14
13	W10309994		Compressor (includes Items 14,15,16,18 & 19)   (Replaces: 4356775)			Immediately	$ 643.55
14	4356738		Relay				$ 53.17
15	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
16	4356777		Cover		Appelez-nous	-
17	4-81785-001		Harness, Fan   (Replaces: 8210426)		Appelez-nous	-
18	2-34286-021		Overload   (Replaces: 4356776)				$ 144.33
19	4356335		Grommet, Compressor		Appelez-nous	-
20	8210220		Bolt, Compressor		Appelez-nous	-
21	4357263		Exchanger, Heat				$ 123.66
22	4357095		Pan, Compressor		Appelez-nous	-
23	W10451951		Condenser   (Replaces: 8210248)				$ 300.73
24	WP3400094		Screw   (Replaces: 4356970)				$ 9.26
25	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
26	3-35956-013		Capacitor   (Replaces: 8210224)				$ 121.12
27	4357123		Plate, Evaporator Mount		Appelez-nous	-
28	1-80252-101		Block Foam   (Replaces: 8210261)				$ 6.84
29	WP489491		Screw   (Replaces: 4390821)				$ 7.30
NI	N/P		Refrigerant Charge (6.2 Oz. (r134a))		Appelez-nous	-
