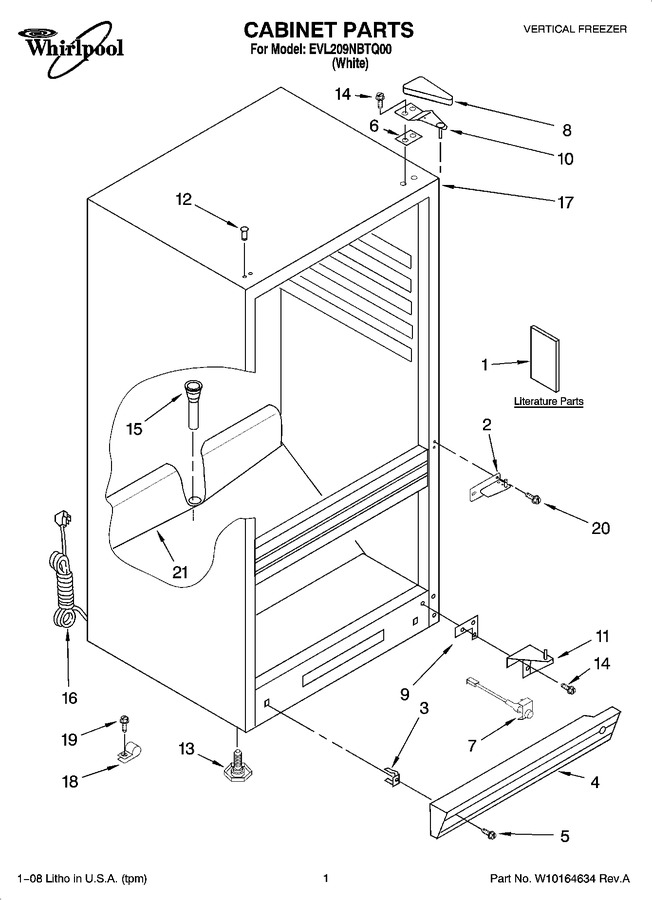

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10164586		Owners Manual		Appelez-nous	-
1	W10164585		Energy Label/tag		Appelez-nous	-
1	W10183363		Instructions, Field Installable Ice Maker		Appelez-nous	-
2	W10164537		Hinge, Center		Appelez-nous	-
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
4	8210310		Grille		Appelez-nous	-
5	WP489478		Screw   (Replaces: 4357243)				$ 8.18
6	4390489		Shim, Hinge				$ 7.30
7	4390905		Power Light Assembly		Appelez-nous	-
8	4357279		Hinge Cover				$ 46.56
9	4390489		Shim, Bottom				$ 7.30
10	2-81016-105		Hinge, Top   (Replaces: 8210222)				$ 43.24
11	W10164619		Hinge, Bottom		Appelez-nous	-
12	WP2189000		Plug (white)   (Replaces: 4390596)			Immediately	$ 7.77
13	W11117769		Leg, Leveler (2)   (Replaces: 4390866)			Immediately	$ 19.37
14	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
15	W10164544		Grommet, Drain		Appelez-nous	-
16	W10164631		Cord, Power		Appelez-nous	-
18	488946		Clamp, Tube   (Replaces: 4356643)				$ 21.47
19	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
20	W10171790		Screw 10-32 X 1		Appelez-nous	-
21	W10164550		Shield, Drain Trough		Appelez-nous	-
