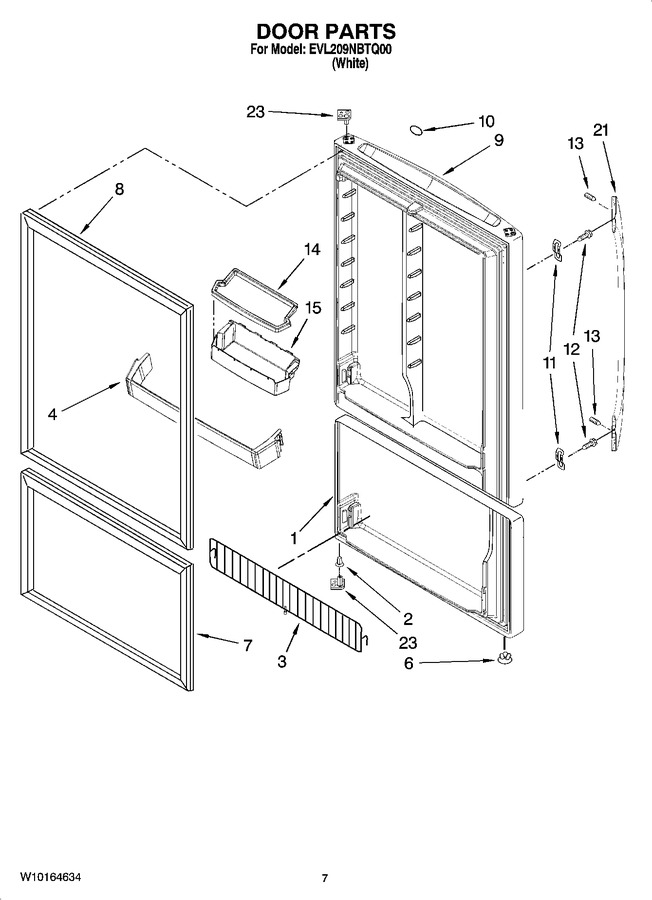

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10164616 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 2 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 3 | W10164620 | Rail, Door (wire) |
|
- | |||||
| 4 | WP4-65451-001 | Rail, Door (1) (Replaces: 8210404) |
|
$ 99.84 | |||||
| 6 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 7 | W10164618 | Gasket, Lower Door |
|
$ 149.32 | |||||
| 8 | 4-65151-006 | Gasket, Door (upper) (Replaces: W10164617) |
|
$ 331.84 | |||||
| 9 | W10164614 | Door Assy. (top) (includes Interior Door Liner) |
|
$ 451.30 | |||||
| 10 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 11 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 12 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 13 | 8533920 | Screw |
|
$ 5.27 | |||||
| 14 | W10164622 | Cover, Door Bin (4) |
|
- | |||||
| 15 | WP4-82576-001 | Bin, Door (Replaces: W10164621) |
|
$ 83.29 | |||||
| 21 | 2313345W | Handle |
|
- | |||||
| 23 | 8210400 | Stop, Door (2) |
|
- | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
