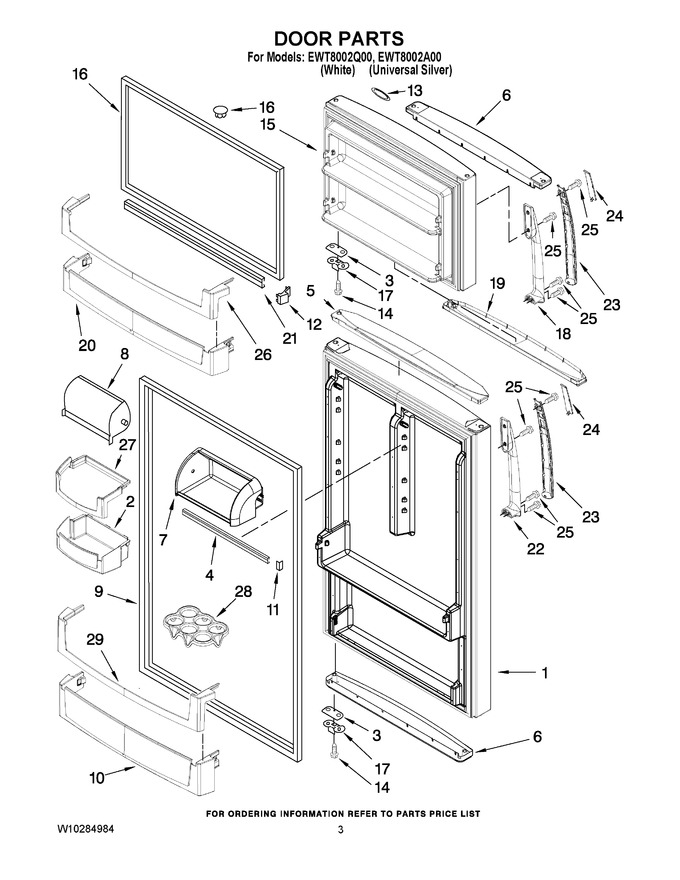

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2323816L | Refrigerator Door (includes Illus. 5,6 & 9) (universal Silver) |
|
- | |||||
| 1 | 2323816W | Refrigerator Door (includes Illus. 5,6 & 9) (white) |
|
- | |||||
| 2 | 2324274 | Bin-door (3) |
|
- | |||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 122.35 | ||||
| 5 | W10198759 | Endcap, Top Rc (apollo Grey) |
|
- | |||||
| 5 | 2316411W | Endcap, Top Rc (white) |
|
- | |||||
| 6 | W10198760 | Endcap (apollo Grey) |
|
- | |||||
| 6 | 2316409W | Endcap (white) |
|
- | |||||
| 7 | 2316052 | Housing, Compartment |
|
- | |||||
| 8 | 2325501 | Door, Compartment |
|
- | |||||
| 9 | WP2319264W | Door Gasket, Magnetic (Replaces: 2264727) |
|
Immediately | $ 329.08 | ||||
| 10 | 2324269 | Trim, Door Shelf (botton) |
|
- | |||||
| 11 | WP2156003 | Endcap, Trim-rc (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 14 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 15 | 2323817L | Freezer Door (includes Illus. 6,16 & 19) (universal Silver) |
|
- | |||||
| 15 | 2323817W | Freezer Door (includes Illus. 6,16 & 19) (white) |
|
$ 504.55 | |||||
| 16 | WP2319263W | Door Gasket, Magnetic (Replaces: 2264726) |
|
Immediately | $ 151.03 | ||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 18 | 2319301D | Handle, Fc (sliver) |
|
- | |||||
| 18 | 2319301W | Handle-fc (white) |
|
- | |||||
| 19 | W10198761 | Endcap, Bottom Fc (apollo Grey) |
|
- | |||||
| 19 | 2316410W | Endcap, Bottom Fc (white) |
|
- | |||||
| 20 | 2324265 | Trim, Fc Door |
|
- | |||||
| 21 | 2324266 | Trim, Door Shelf |
|
- | |||||
| 22 | 2319300D | End Cap-handle-rc (silver) |
|
- | |||||
| 22 | 2319300W | End Cap-handle-rc (white) |
|
$ 36.73 | |||||
| 23 | 2319302D | Cap-handle Rc & Fc (silver) |
|
- | |||||
| 23 | 2319302W | Cap-handle Rc & Fc (white) |
|
- | |||||
| 24 | 2319303C | Insert-cap-handle |
|
- | |||||
| 25 | WP489491 | Screw (Replaces: W10002730) |
|
$ 7.30 | |||||
| 26 | 2264943 | Collar-trivet-fc |
|
- | |||||
| 27 | 2264920 | Collar, Bin-rc |
|
- | |||||
| 28 | 2325519 | Egg Rack |
|
- | |||||
| 29 | 2264930 | Collar-trivet-rc |
|
- |
