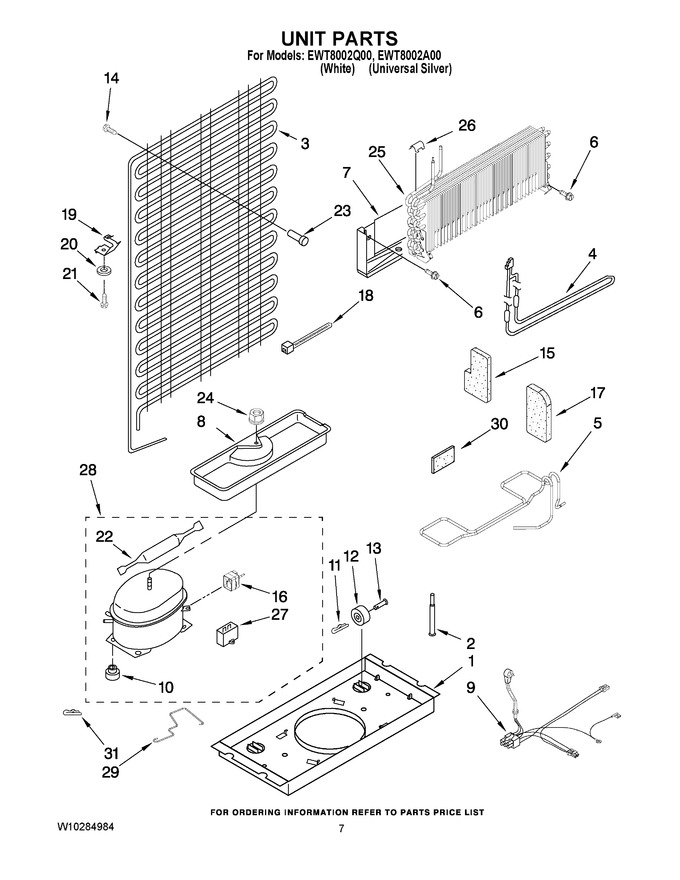

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10222451		Support Plate, Compressor				$ 32.07
2	W11661102		Tube, Process   (Replaces: 2174739)				$ 29.01
3	WPW10219348		Condenser   (Replaces: W10219348)				$ 295.28
4	WP2167357		Heater, Defrost   (Replaces: 2167357)				$ 157.28
5	W10245438		Tube, Discharge (incl. Pre-cooler)		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
7	2319224		Heat Shield				$ 116.21
8	2201801		Evaporator Tray				$ 78.52
9	W10183888		Wire Assy. Unit		Appelez-nous	-
10	WP2163786		Grommet (production)   (Replaces: 2222084)				$ 7.96
10	876811		Grommet (service)   (Replaces: 1100826)				$ 7.42
11	WP2174706		Clip-roller   (Replaces: 2174706)				$ 10.98
12	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
13	W11594405		Axle, Rivet   (Replaces: 2262072)			Immediately	$ 18.21
14	8533892		Screw		Appelez-nous	-
15	2262191		Wedge-evaporator		Appelez-nous	-
16	2321301		Start-device, Combination (start Relay And Overload) (service)		Appelez-nous	-
17	2262192		Wedge-evaporator		Appelez-nous	-
18	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
19	2263628		Clip, Retainer		Appelez-nous	-
20	8526417		Washer   (Replaces: VS611)				$ 13.94
21	8533892		Screw		Appelez-nous	-
22	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
22	W10843121		Drier (production)   (Replaces: W10190413)			Immediately	$ 52.57
23	2258452		Bracket, Condenser		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.24
25	WP2263920		Evaporator Assy.   (Replaces: 2263920)			Immediately	$ 317.35
26	9791833		Clip, Evaporator		Appelez-nous	-
27	2321245		Capacitor (service)		Appelez-nous	-
27	2321245		Capacitor (production)   (Replaces: 2254217)		Appelez-nous	-
28	W10170300		Compressor (includes Items 10, 16, 22, & 27)   (Replaces: 2321299)		Appelez-nous	-
29	2263628		Clip, Retainer		Appelez-nous	-
30	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.07
31	24364001		Clip, Compressor		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (3.75 Ozs. R134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
