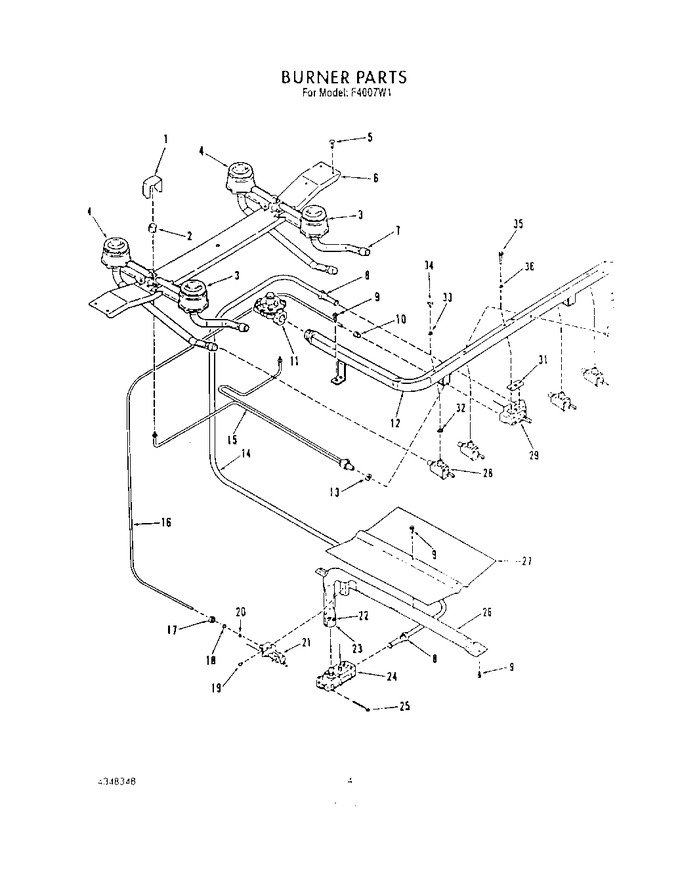

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4327662 | Shield, Pilot |
|
- | |||||
| 2 | 4330078 | Cup, Pilot |
|
- | |||||
| 3 | 4336921 | Burner, Front-lt. (inc`s No.7) |
|
- | |||||
| 4 | 4336922 | Burner, Rear-lt/rt (inc`s No.7) |
|
- | |||||
| 5 | 4335339 | Screw No.6-32x3/8 |
|
- | |||||
| 6 | 4337014 | Support, Burner |
|
- | |||||
| 7 | 4335197 | Air Shutter |
|
- | |||||
| 8 | 4324278 | Nut, Inverted 3/8 |
|
- | |||||
| 9 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 10 | 4323489 | Nut, Hex |
|
- | |||||
| 11 | 4343047 | Pressure Regulator (lp Gas) |
|
- | |||||
| 11 | 4334271 | Regulator-pressure (nat Gas) |
|
- | |||||
| 12 | 4337089 | Manifold Pipe |
|
- | |||||
| 13 | 4334043 | Seal |
|
- | |||||
| 14 | 4343048 | Tubing 3/8`` |
|
- | |||||
| 15 | 4334049 | Filter-w/pilot |
|
- | |||||
| 16 | 4354564 | Tubing 3/16 |
|
- | |||||
| 17 | 4323359 | Nut-compression - 3/16`` |
|
- | |||||
| 18 | 4350216 | Sleeve-compression 3/16`` |
|
- | |||||
| 19 | 4326551 | Screw, No.10-24 X 1/4 |
|
- | |||||
| 20 | 4332673 | Orifice |
|
- | |||||
| 21 | 4332674 | Pilot |
|
- | |||||
| 22 | 4331502 | Screw, Adjustment |
|
- | |||||
| 23 | 4331501 | Shutter, Air |
|
- | |||||
| 24 | 4343049 | Valve, Safety (lp Gas) |
|
- | |||||
| 24 | 4354616 | Valve, Safety (nat Gas) |
|
- | |||||
| 25 | 4333826 | Screw, No.10-32 X 2 |
|
- | |||||
| 26 | 4336130 | Burner-oven (inc`s 22, 23 & 27) |
|
- | |||||
| 27 | 4336021 | Baffle |
|
- | |||||
| 28 | 4336714 | Valve, Gas (nat Gas) |
|
- | |||||
| 28 | 4343050 | Valve, Gas (lp Gas) |
|
- | |||||
| 29 | 4337363 | Thermostat (inc`s. No.31) |
|
- | |||||
| 30 | 4334044 | Screw, Mounting (for No.15) |
|
- | |||||
| 31 | 4332708 | Seal-thermostat |
|
- | |||||
| 32 | 4331665 | Seal (for No.28) |
|
- | |||||
| 33 | 4353254 | Seal (for No.34) |
|
- | |||||
| 34 | 4331097 | Screw (for No.28) |
|
- | |||||
| 35 | 4332668 | Screw (for No.29) |
|
- | |||||
| 36 | 4332709 | Seal (for No.35) |
|
- |
