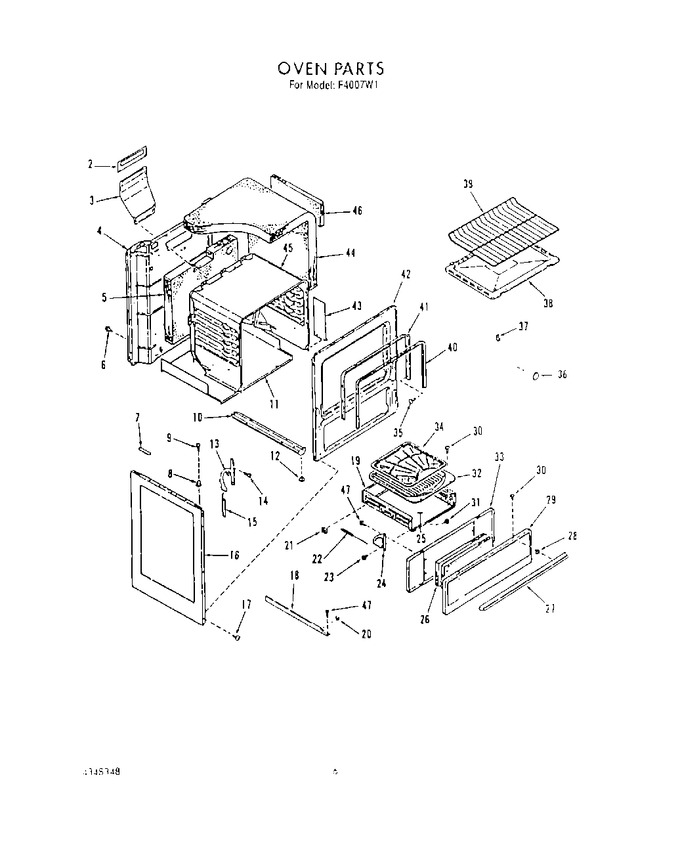

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4336020		Insulation-flue		Appelez-nous	-
3	4335162		Deflector-flue		Appelez-nous	-
4	4335165		Back		Appelez-nous	-
5	4354817		Insulation-back		Appelez-nous	-
6	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
7	4337485		Spacer-top		Appelez-nous	-
8	4337082		Strike		Appelez-nous	-
9	4335220		Screw No.6-32x7/8		Appelez-nous	-
10	4337332		Base W/levelers-lt Or Rt		Appelez-nous	-
11	4335153		Bottom		Appelez-nous	-
12	4334800		Levelers, Leg (4)		Appelez-nous	-
13	4336784		Hinge-door (left)				$ 80.99
13	4336783		Hinge-door (right)				$ 44.64
14	4336631		Screw		Appelez-nous	-
15	4337296		Spring-door		Appelez-nous	-
16	4337593		Side-body (almond)		Appelez-nous	-
16	4337592		Side-body (wheat)		Appelez-nous	-
16	4337591		Side-body (white)		Appelez-nous	-
17	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
18	4337202		Guide-broiler (right)		Appelez-nous	-
18	4337201		Guide-broiler (left)		Appelez-nous	-
19	4342680		Drawer, Broiler		Appelez-nous	-
20	4337370		Slide Block-front		Appelez-nous	-
21	4337369		Slide Block-rear		Appelez-nous	-
22	4335295		Spring-broiler		Appelez-nous	-
23	4335999		Bolt, Shoulder		Appelez-nous	-
24	4335296		Hinge-broiler (right)		Appelez-nous	-
24	4335297		Hinge-broiler (left)		Appelez-nous	-
25	4337538		Bottom, Drawer		Appelez-nous	-
26	4327653		Insulation		Appelez-nous	-
27	4337344		Handle		Appelez-nous	-
28	4323997		Spacer		Appelez-nous	-
29	4343052		Panel-broiler Door (almond)		Appelez-nous	-
29	4343051		Panel-broiler Door (white)		Appelez-nous	-
29	4343053		Panel-broiler Door (wheat)		Appelez-nous	-
30	4323778		Screw, No.10-32 X 1/2		Appelez-nous	-
31	W10080180		Nut, Hex No.10-24   (Replaces: 4323461)				$ 12.74
32	4336603		Pan, Broiler		Appelez-nous	-
33	4336584		Lining, Broiler Door		Appelez-nous	-
34	4336598		Grid, Broiler Pan		Appelez-nous	-
35	WP308685		Screw No.10-1/2``   (Replaces: 4323379)			Immediately	$ 7.08
36	4323720		Plug Button		Appelez-nous	-
37	4324423		Clip, Thermostat		Appelez-nous	-
38	4336570		Bottom, Oven		Appelez-nous	-
39	4354754		Rack, Oven		Appelez-nous	-
40	4354751		Seal, Oven Door		Appelez-nous	-
41	4335426		Retainer, Door Seal		Appelez-nous	-
42	4337112		Frame, Front		Appelez-nous	-
43	4335889		Retainer Insol		Appelez-nous	-
44	4354750		Insulation-top & Sides		Appelez-nous	-
45	4336910		Oven		Appelez-nous	-
46	4327653		Insulation		Appelez-nous	-
47	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62

    View Diagram in Separate Window       Print Part List
