SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Main Top


04 - Wire Harness/components/griddle


05 - Burner


06 - Body

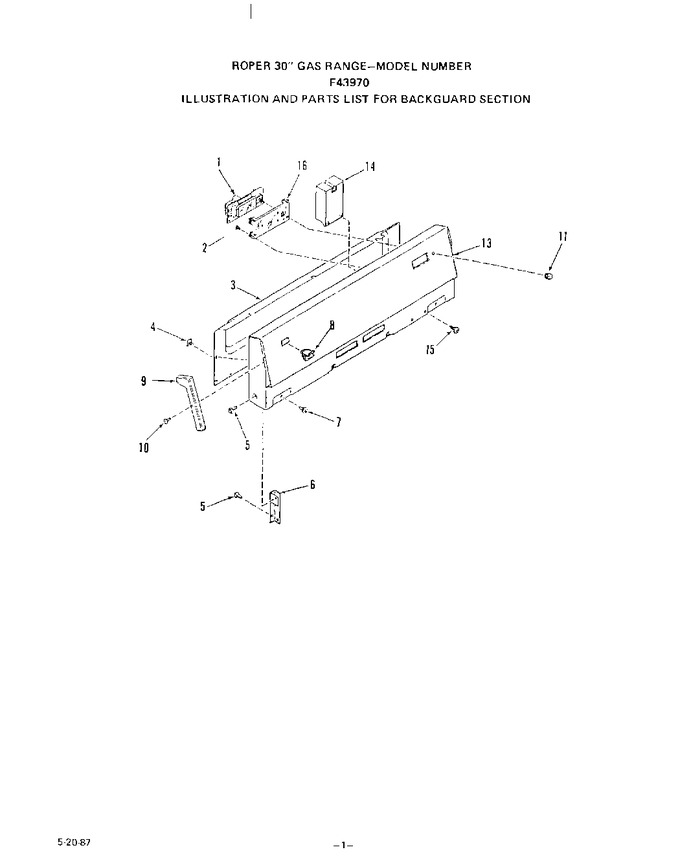

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	335616		Clock		Appelez-nous	-
2	336677		Screw 6-32x1/2``		Appelez-nous	-
3	335841		Wire Cover		Appelez-nous	-
4	70588		Trim Clip		Appelez-nous	-
5	327320		Screw 10-16x7/16``		Appelez-nous	-
6	327106		Support (right)		Appelez-nous	-
6	327107		Support (left)		Appelez-nous	-
7	326974		Screw 10abx1/2``		Appelez-nous	-
8	334649		Switch-oven Light		Appelez-nous	-
9	326284		End Cap (right)		Appelez-nous	-
9	326285		End Cap (left)		Appelez-nous	-
10	329382		Screw		Appelez-nous	-
11	334961		Knob-clock		Appelez-nous	-
13	336219		Panel-backguard-black		Appelez-nous	-
14	326136		Module - Spark Igniter		Appelez-nous	-
15	120855		Screw 6abx3/8``		Appelez-nous	-
16	326870		Valve Switches		Appelez-nous	-
16	336943		Lens		Appelez-nous	-
16	327204		Main		Appelez-nous	-
16	334351		Oven Light		Appelez-nous	-
	337925		Xrepair Parts List		Appelez-nous	-
	335344		Xinstallation Guide		Appelez-nous	-
	335338		Xuse & Care Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
