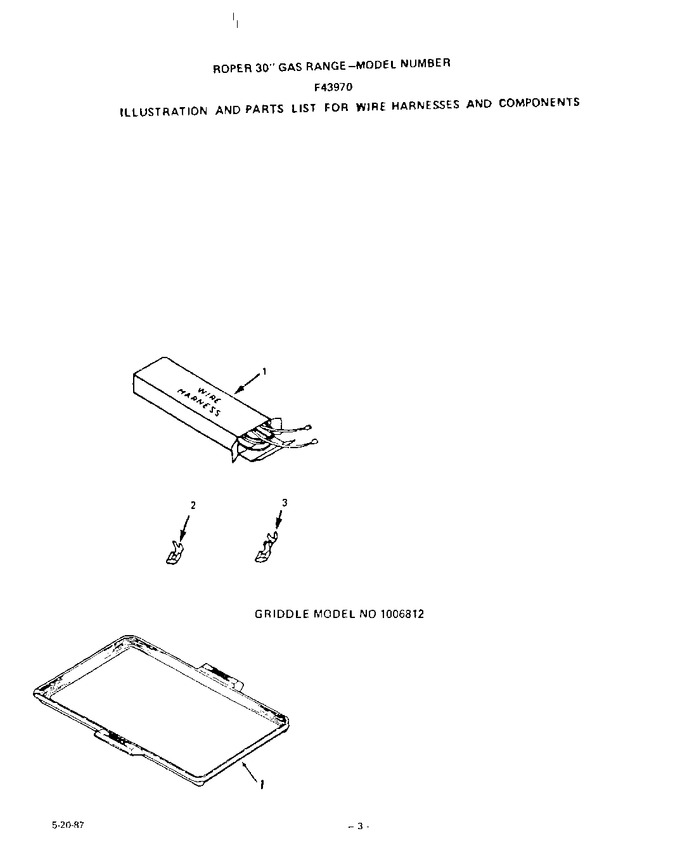

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Main Top
04 - Wire Harness/components/griddle
05 - Burner
06 - Body
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327204 | Wire Harness (main) |
|
- | |||||
| 1 | 326870 | Wire Harness (switches, Gas Valve) |
|
- | |||||
| 1 | 334351 | Wire Harness (oven Light) |
|
- | |||||
| 2 | 238391 | Flag Terminal 1/4`` |
|
- | |||||
| 3 | 238392 | Faston Terminal (3/16``) |
|
- | |||||
| 3 | 238393 | Faston Terminal (1/4``) |
|
- | |||||
| A1 | 289671 | Set-on Griddle |
|
- |
