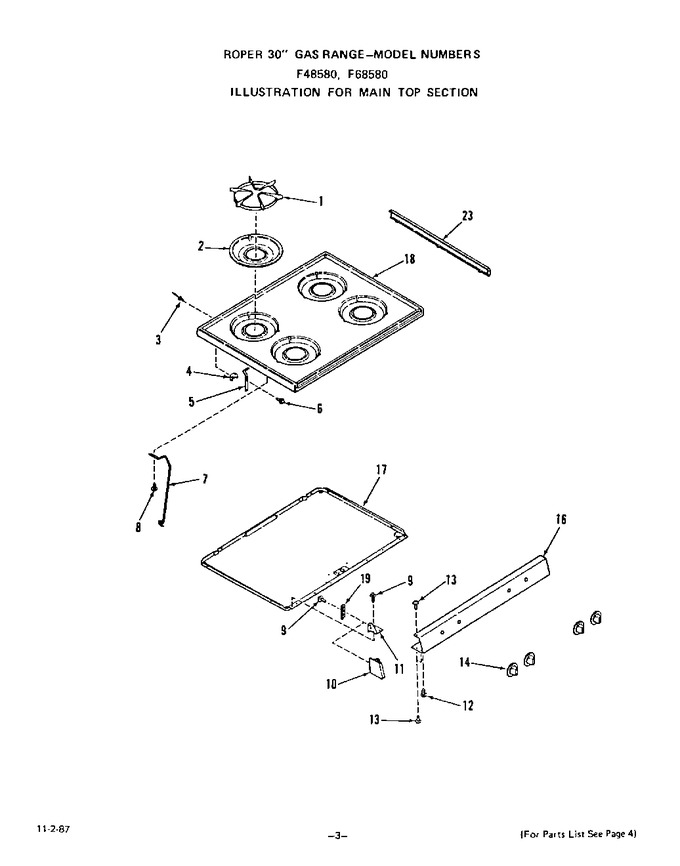

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330242		Top Burner Grate (4 Req)		Appelez-nous	-
2	332299		Aeration Pan (4 Req)		Appelez-nous	-
3	338735		Rivet Pop		Appelez-nous	-
4	335975		Hinge Mounting Bracket		Appelez-nous	-
5	320921		Right		Appelez-nous	-
5	320922		Left		Appelez-nous	-
6	321162		Screw 10-32 X 3/4``		Appelez-nous	-
7	332284		Main Top Support Rod (2 Req)		Appelez-nous	-
8	337857		Screw		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	333349		Right		Appelez-nous	-
10	333350		Left		Appelez-nous	-
11	333352		Left		Appelez-nous	-
11	333351		Right		Appelez-nous	-
12	335967		Screw		Appelez-nous	-
13	337857		Screw 10abx1/2``		Appelez-nous	-
14	338397		Gas Valve Knob (4 Req)		Appelez-nous	-
16	335321		Manifold Panel		Appelez-nous	-
17	333544		Burner Box Bottom		Appelez-nous	-
18	338835		White		Appelez-nous	-
18	338836		Almond		Appelez-nous	-
19	335977		Cleat		Appelez-nous	-
23	332281		Right		Appelez-nous	-
23	332282		Left		Appelez-nous	-
