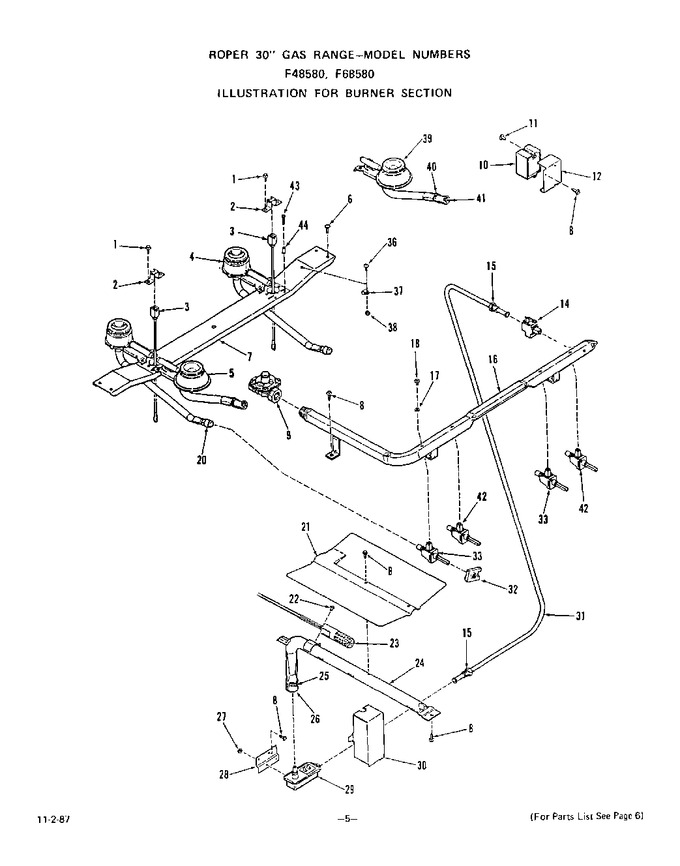

04 - Burner


05 - Body


06 - Oven Door


07 - Wire Harness/components/griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	97217		Screw 8 - 32x3/8``		Appelez-nous	-
2	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
3	313629		Right		Appelez-nous	-
3	334509		Left		Appelez-nous	-
4	333223		Rear Burner-rt. Or Lt.		Appelez-nous	-
5	334818		Front Burner-lt.		Appelez-nous	-
6	327621		Screw 6-32x3/8``		Appelez-nous	-
7	338635		Support-top Burner		Appelez-nous	-
8	327320		Screw 10-16x7/16``		Appelez-nous	-
10	320990		Module-spark Igniter		Appelez-nous	-
11	329382		Screw 6-20x3/8``		Appelez-nous	-
12	315369		Bracket - Spark Igniter Module		Appelez-nous	-
14	326830		Shut Off Valve		Appelez-nous	-
15	113384		Inverted Nut 3/8``		Appelez-nous	-
16	338398		Manifold Pipe		Appelez-nous	-
17	311692		Gasket (for Key 18)		Appelez-nous	-
18	311455		Screw (for Key 33)		Appelez-nous	-
19	324528		Pressure Regulator		Appelez-nous	-
20	327198		Air Shutter		Appelez-nous	-
21	329316		Baffle - Oven Burner		Appelez-nous	-
22	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
23	WG02F04373		Oven Igniter   (Replaces: 337263)			Immediately	$ 139.81
24	331173		Oven Burner Asm. (inc`s Keys 21, 25, 26)		Appelez-nous	-
25	312989		Adjustment Screw		Appelez-nous	-
26	312988		Air Shutter		Appelez-nous	-
27	236313		Hex Nut 6-32		Appelez-nous	-
28	296179		Bracket-control Valve		Appelez-nous	-
29	321756		Control Valve		Appelez-nous	-
30	327090		Cover-control Valve		Appelez-nous	-
31	315807		Tubing 3/8`` (inc`s Key 15)		Appelez-nous	-
32	338399		Switch-gas Valve		Appelez-nous	-
33	338396		Gas Valve		Appelez-nous	-
36	238833		Screw 8-32 X 3/8``		Appelez-nous	-
37	106767		Clip		Appelez-nous	-
38	239764		Nut		Appelez-nous	-
39	334818		Front Burner-rt. (inc`s Key 40, 41)		Appelez-nous	-
40	301911		Adjustment Screw		Appelez-nous	-
41	301910		Air Shutter		Appelez-nous	-
42	338663		Gas Valve (inc`s Key 18)		Appelez-nous	-
43	327256		Screw 6-32x7/8``		Appelez-nous	-
44	335718		Eyelet		Appelez-nous	-
