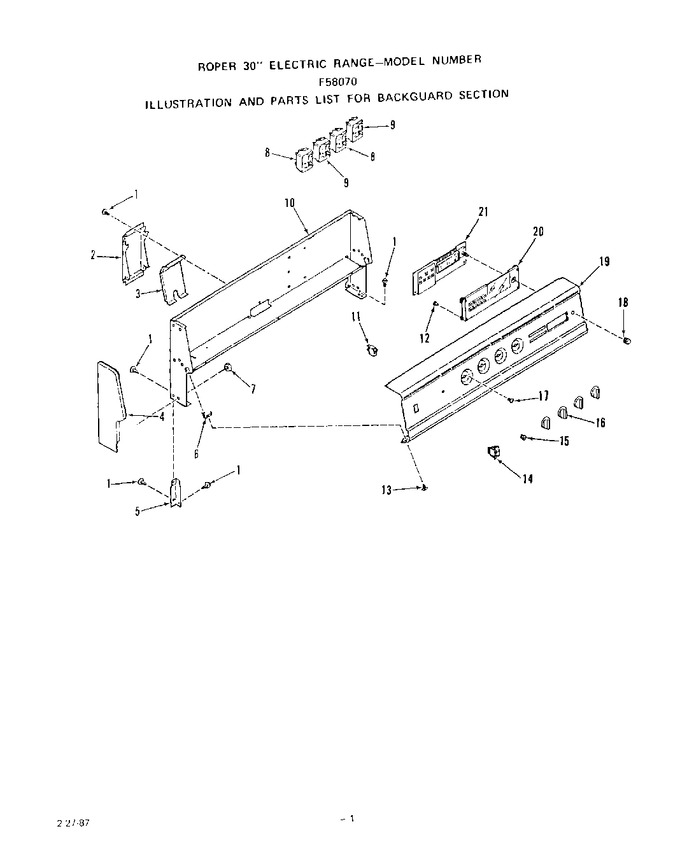

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw |
|
- | |||||
| 2 | 334363 | Wire Raceway |
|
- | |||||
| 3 | 334364 | Raceway Cover |
|
- | |||||
| 4 | 334162 | Left |
|
- | |||||
| 4 | 334161 | Right |
|
- | |||||
| 5 | 334338 | Left |
|
- | |||||
| 5 | 334337 | Right |
|
- | |||||
| 6 | 334375 | Backguard Clip |
|
- | |||||
| 7 | 335776 | Pal Nut |
|
- | |||||
| 8 | 5500-200 | Infinite Switch (lt. Front Or Rt. Rear) (Replaces: 336119) |
|
Immediately | $ 60.94 | ||||
| 9 | 336120 | Infinite Switch (rt. Front-lt. Rear) |
|
- | |||||
| 10 | 334172 | Backguard Body |
|
- | |||||
| 11 | 331717 | Indicator Light |
|
- | |||||
| 12 | 78153 | Screw 6-32x5/16`` |
|
- | |||||
| 13 | 321665 | Screw |
|
- | |||||
| 14 | 334649 | Oven Light Switch |
|
- | |||||
| 15 | 331705 | Lens-indicator Light |
|
- | |||||
| 16 | 334562 | Infinite Knob |
|
- | |||||
| 17 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 18 | 334914 | Clock Knob/oven Control |
|
- | |||||
| 19 | 335645 | Control Panel |
|
- | |||||
| 20 | 335646 | Clock Lens/oven Control |
|
- | |||||
| 21 | 336282 | Clock/oven Control |
|
- |
