Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3147131 Element-small   (Replaces: 329106) Special Order $ 285.56

2 WP3147132 Element-large   (Replaces: 329107) Special Order $ 318.14

4 336012 White Appelez-nous -
4 336013 Almond Appelez-nous -
6 329108 Element Clamp-large Appelez-nous -
7 329109 Element Clamp-small Appelez-nous -
8 334965 Element Strap Appelez-nous -
9 329326 Nut (4 Reg.) Appelez-nous -
10 316849 Screw-10-32x1/2`` Appelez-nous -
11 327320 Screw 10-16x7/16`` Appelez-nous -
12 335784 Vent Seal Appelez-nous -
13 334089 Right Appelez-nous -
13 333859 Left Appelez-nous -
14 336396 Burner Box Bottom Appelez-nous -
15 314124 Screw Appelez-nous -
16 335820 Cover Plate Appelez-nous -
17 335823 Reinforcement Plate Appelez-nous -
18 335816 Burner Box Baffle Appelez-nous -

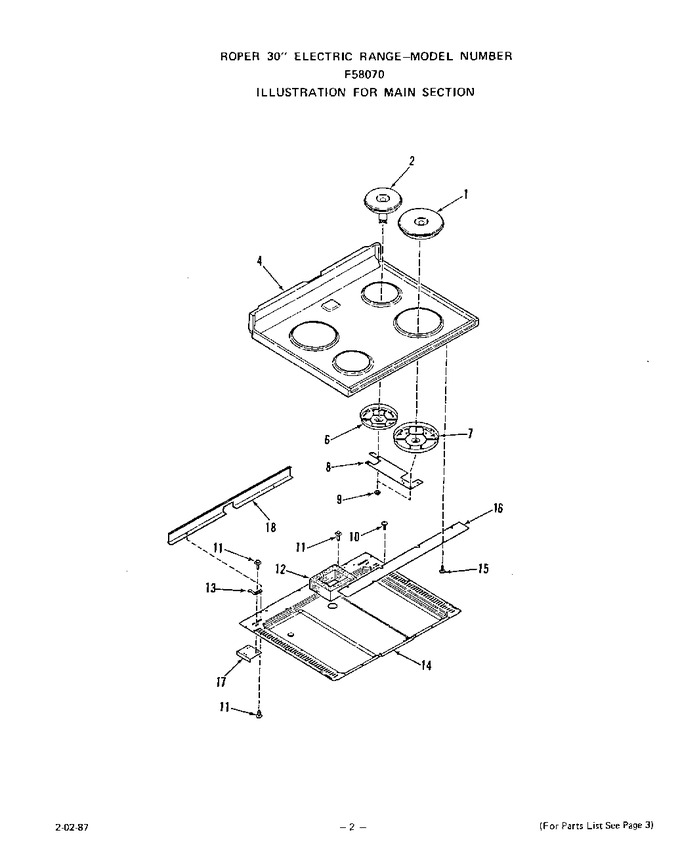

    View Diagram in Separate Window     Print Icon   Print Part List
