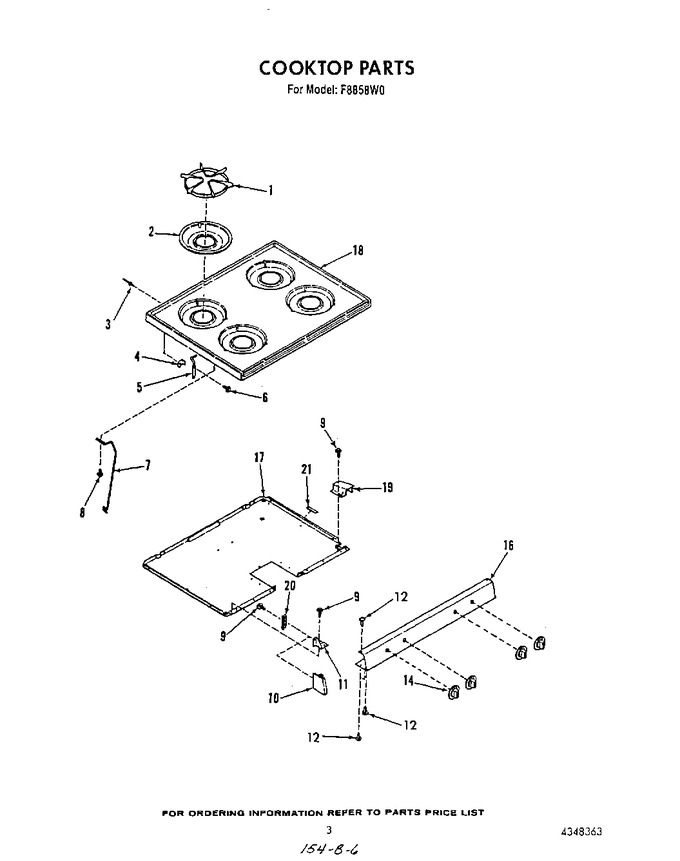

03 - Cook Top


04 - Oven


05 - Broiler And Oven Burner


06 - Cook Top Burner


07 - Door Lock


08 - Oven Door , Lit/optional Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4336234		Grate, Burner (4)		Appelez-nous	-
2	4336770		Drip Bowl (4)				$ 20.74
3	4338425		Rivet		Appelez-nous	-
4	4337624		Bracket, Hinge		Appelez-nous	-
5	4333234		Hinge (right)		Appelez-nous	-
5	4333235		Hinge (left)		Appelez-nous	-
6	WP999367		Screw No. 10-32x3/4   (Replaces: 4333332)				$ 7.70
7	4336765		Rod, Support		Appelez-nous	-
8	4338182		Screw		Appelez-nous	-
9	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
10	4336961		End Cap (left)		Appelez-nous	-
10	4336960		End Cap (right)		Appelez-nous	-
11	4336963		Bracket, Manifold (left)		Appelez-nous	-
11	4336962		Bracket, Manifold (right)		Appelez-nous	-
12	4338182		Screw, No.6-20 X 3/8		Appelez-nous	-
14	4337120		Knob, (4) Gas Valve		Appelez-nous	-
16	4337486		Panel, Manifold		Appelez-nous	-
17	4337005		Bottom, Burner Box		Appelez-nous	-
18	4336778		Main Cooktop (white)		Appelez-nous	-
18	4354908		Main Cooktop (chrome)		Appelez-nous	-
18	4336779		Main Cooktop (almond)		Appelez-nous	-
19	4337162		Wire Cover		Appelez-nous	-
20	4337625		Cleat		Appelez-nous	-
21	4337571		Tubing Spacer		Appelez-nous	-
