SELECT A DIAGRAM

02 - Control Panel


03 - Cook Top


04 - Oven


05 - Broiler And Oven Burner


06 - Cook Top Burner

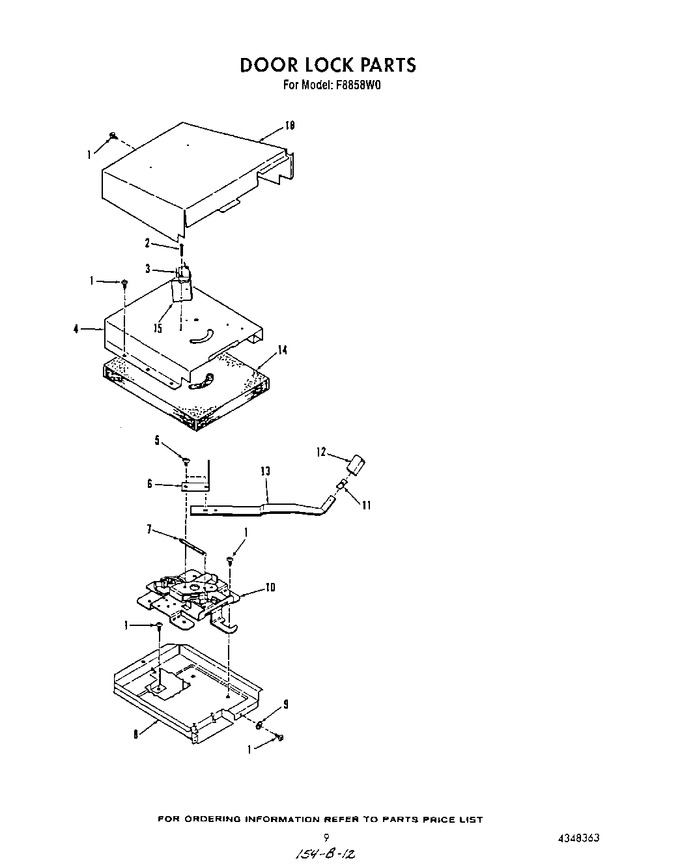

07 - Door Lock


08 - Oven Door , Lit/optional Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4335881		Screw No.4-40x11/16		Appelez-nous	-
3	4337377		Switch, Micro		Appelez-nous	-
4	4337019		Cover, Lock		Appelez-nous	-
5	4326551		Screw, No.10-24 X 1/4		Appelez-nous	-
6	4337626		Extension, Handle		Appelez-nous	-
7	4331536		Spring		Appelez-nous	-
8	4337018		Box, Lock		Appelez-nous	-
9	4323206		Washer		Appelez-nous	-
10	4335767		Latch Assembly (inc`s No.7)		Appelez-nous	-
11	4335705		Clip, Knob		Appelez-nous	-
12	4337568		Knob, Lock		Appelez-nous	-
13	4337038		Handle, Latch		Appelez-nous	-
14	4335703		Insulation-latch		Appelez-nous	-
15	4335973		Insulator (3)		Appelez-nous	-
18	4337034		Cover, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
