SELECT A DIAGRAM

02 - Backguard , Lit/optional


03 - Main Top


04 - Body


05 - Top Burner


06 - Oven Door


07 - Broiler And Oven Burner


08 - Power Lock


09 - Wire Harnesses And Components

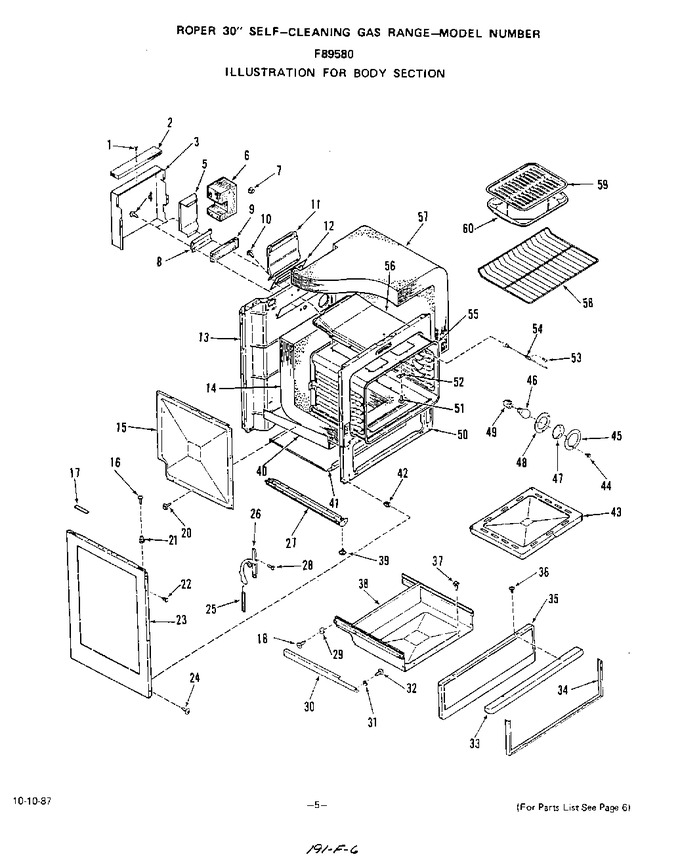

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296097		Dart Button		Appelez-nous	-
2	329834		Insulation		Appelez-nous	-
3	328487		Flue Deflector Shield		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	327808		Wire Shield		Appelez-nous	-
6	335815		Insulation		Appelez-nous	-
7	324257		Bushing		Appelez-nous	-
8	327809		Wire Shield		Appelez-nous	-
9	330166		Insulation		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	331564		Flue Deflector		Appelez-nous	-
12	336510		Gasket		Appelez-nous	-
13	338314		Main Back		Appelez-nous	-
14	329146		Insulation		Appelez-nous	-
15	333704		Insulation Retainer		Appelez-nous	-
16	327256		Screw 6-32x7/8``		Appelez-nous	-
17	335320		Main Top Spacer		Appelez-nous	-
18	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.84
20	327320		Screw 10-16x7/16``		Appelez-nous	-
21	333892		Strike		Appelez-nous	-
22	281160		Rivet		Appelez-nous	-
23	335826		Body Side (white)		Appelez-nous	-
23	335830		Body Side (almond)		Appelez-nous	-
24	314124		Screw 8abx5/8``		Appelez-nous	-
25	326965		Oven Door Spring		Appelez-nous	-
26	334632		Oven Door Hinge (right)		Appelez-nous	-
26	334633		Oven Door Hinge (left)		Appelez-nous	-
27	334811		Base W/levelers		Appelez-nous	-
28	331704		Screw		Appelez-nous	-
29	281913		Slide Block-rear		Appelez-nous	-
30	311441		Storage Drawer Support		Appelez-nous	-
31	281914		Slide Block-front		Appelez-nous	-
32	295849		Screw 10-32x17/32``		Appelez-nous	-
33	332205		Handle		Appelez-nous	-
34	332161		Frame		Appelez-nous	-
35	338164		Front Panel		Appelez-nous	-
36	336529		Screw		Appelez-nous	-
37	327320		Screw		Appelez-nous	-
38	338189		Storage Drawer		Appelez-nous	-
39	326052		Leg Leveler		Appelez-nous	-
40	331144		Insulation Retainer		Appelez-nous	-
41	338161		Vent Baffle		Appelez-nous	-
42	330031		Expansion Nut Spacer   (Replaces: 312605)			Immediately	$ 19.92
43	335231		Oven Bottom		Appelez-nous	-
44	327320		Screw 10-16x7/16``		Appelez-nous	-
45	229372		Oven Light Lens Retainer		Appelez-nous	-
46	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 160.00
47	114989		Oven Lamp Lens		Appelez-nous	-
48	229371		Lens Gasket		Appelez-nous	-
49	87883		Oven Lamp Holder		Appelez-nous	-
50	338305		Oven Frame		Appelez-nous	-
51	327320		Screw		Appelez-nous	-
52	304835		Cover		Appelez-nous	-
53	293121		Screw		Appelez-nous	-
54	12001656		Sensor   (Replaces: 334300)			Immediately	$ 50.14
55	337039		Oven Body		Appelez-nous	-
56	327781		Flue Box		Appelez-nous	-
57	329147		Insulation-top & Side		Appelez-nous	-
58	338368		Oven Rack (folding)		Appelez-nous	-
58	326069		Oven Rack (non-folding)		Appelez-nous	-
59	326297		Broiler Pan Grid		Appelez-nous	-
60	331592		Broiler Pan		Appelez-nous	-
