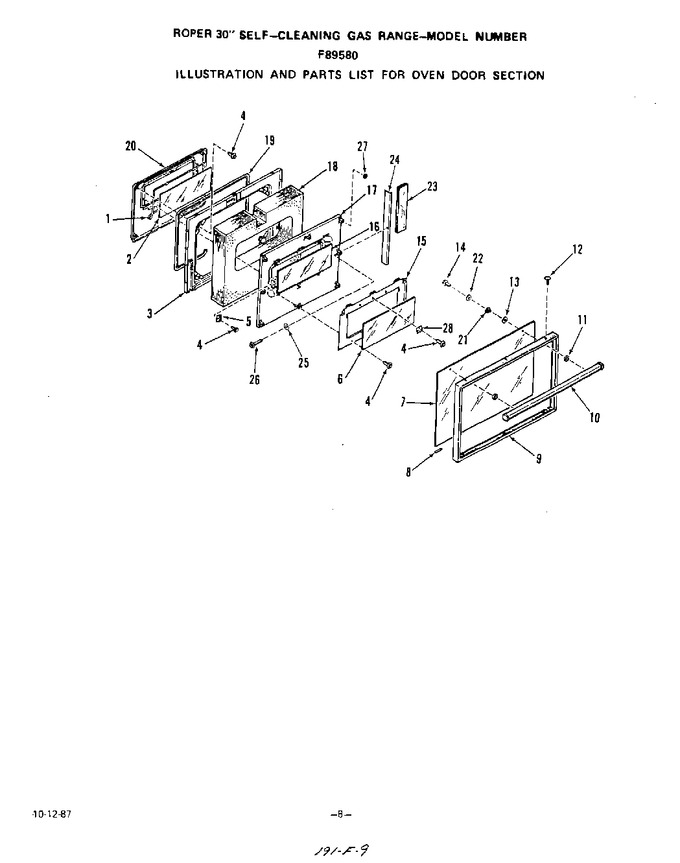

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302935		Inner Glass Seal		Appelez-nous	-
2	336442		Inner Glass		Appelez-nous	-
3	331624		Lining		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	312888		Glass Retainer		Appelez-nous	-
6	326088		Intermediate Glass		Appelez-nous	-
7	332067		Outer Glass		Appelez-nous	-
8	112370		Cushion		Appelez-nous	-
9	332065		Frame		Appelez-nous	-
10	332452		Handle		Appelez-nous	-
11	DE81-05147A		Spacer   (Replaces: 107158)				$ 228.66
12	331704		Screw		Appelez-nous	-
13	333014		Washer		Appelez-nous	-
14	300864		Screw 10-32x3/4``		Appelez-nous	-
15	328615		Glass Mounting Plate		Appelez-nous	-
16	338108		Center Glass		Appelez-nous	-
17	328623		Insulation Retainer		Appelez-nous	-
18	335782		Insulation		Appelez-nous	-
19	292244		Gasket		Appelez-nous	-
20	335165		Plug Lining		Appelez-nous	-
21	333015		Glass Spacer		Appelez-nous	-
22	99279		Washer		Appelez-nous	-
23	335781		Insulation		Appelez-nous	-
24	335780		Baffle-side		Appelez-nous	-
25	323451		Washer		Appelez-nous	-
26	105799		Screw 10abx1		Appelez-nous	-
27	335945		Felt Washer		Appelez-nous	-
28	326009		Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
